Rear Toe Adjustment

  1. Measure the alignment on an alignment rack. Refer to Wheel Alignment Measurement
  2. Remove the rear suspension adjust link inner nut (2).

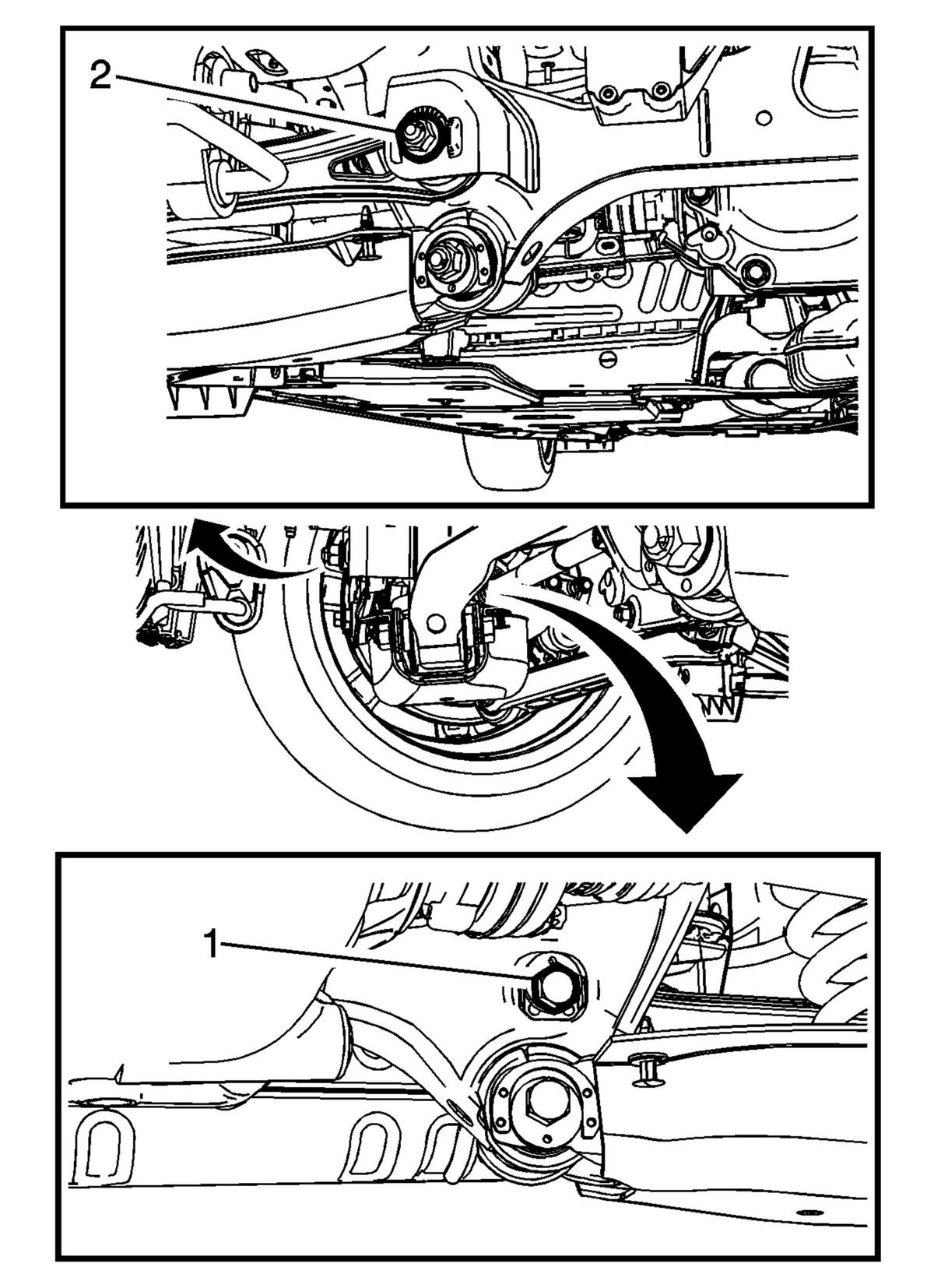

    Fig 1: Rear Suspension Adjust Link Nut & Bolt
    GM2859700Courtesy of GENERAL MOTORS COMPANY
  3. Remove and DISCARD the rear suspension adjust link inner bolt (1).
    CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
  4. Rotate the NEW rear suspension adjust link inner bolt (1) until the proper toe measurement is achieved. Refer to Wheel Alignment Specifications
  5. Hold the rear suspension adjust link inner bolt (1) and tighten the rear suspension adjust link inner nut (2) enough to maintain the adjustment.
  6. Check the alignment specification and re-adjust if needed. Refer to Wheel Alignment Specifications
  7. Hold the NEW rear suspension adjust link inner bolt (1) and tighten the rear suspension adjust link inner nut (2). Refer to Adjust Link Replacement
