Forward Collision Alert Display Replacement

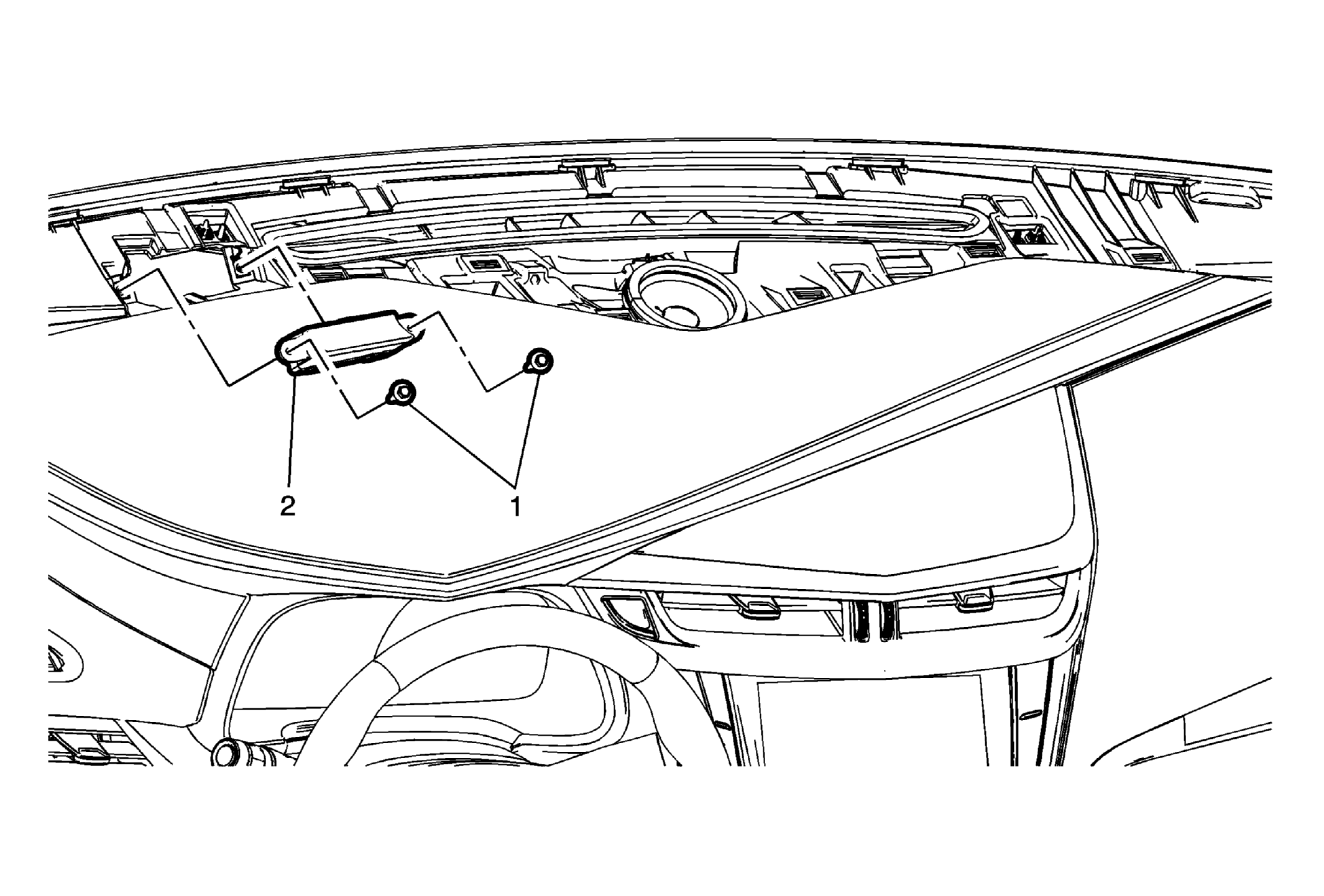

Fig 1: Forward Collision Alert Display
GM3604047Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel extension. Refer to Instrument Panel Extension Replacement .
1 Forward Collision Alert Display Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Forward Collision Alert Display
Procedure
Disconnect the electrical connector.
