Installation Procedure
- If the forward range radar bracket is deformed, replace the bracket. Refer to Forward Range Radar Bracket Replacement .

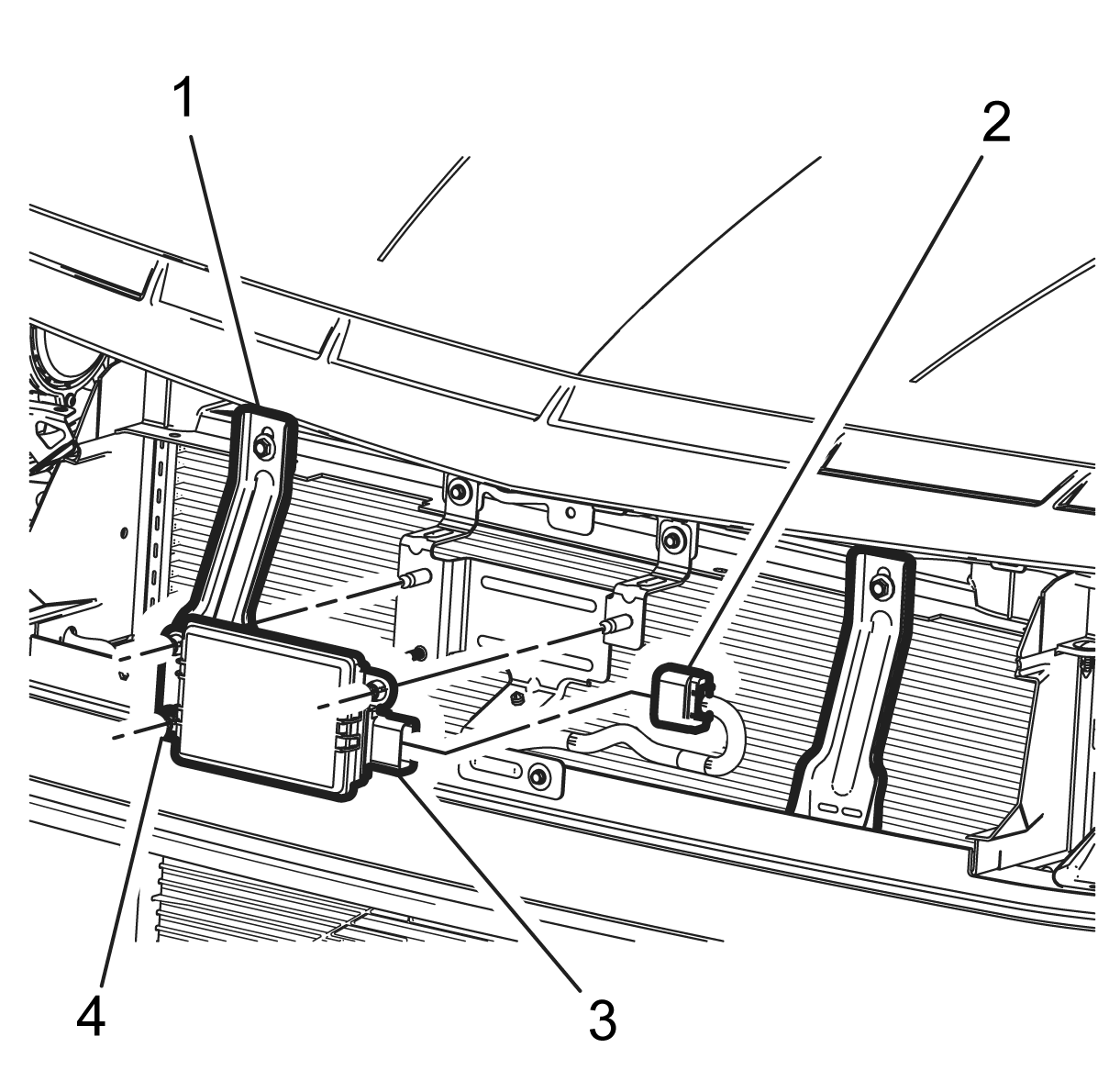

- Carefully press the forward range radar module (3) to the forward range radar module bracket (1) and check for proper seat.
- Connect the forward range radar module wiring harness plug (2).
- Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
- Execute the vertical alignment of the forward range radar module. Refer to Forward Range Radar Module Alignment .
- Install the front bumper fascia. Refer to Front Bumper Fascia Removal and Installation .
- For programming and set up, refer to Control Module References .
NOTE:
Install the forward range radar module beginning with the 2 upper ball sockets and finishing with the ball socket (4). Apply a counterpressure to the opposite side of the bracket to prevent deformation of the bracket.
NOTE:
The front bumper fascia must be installed, before continuing with the horizontal alignment.
