Pedestrian Sound Alert Module Replacement

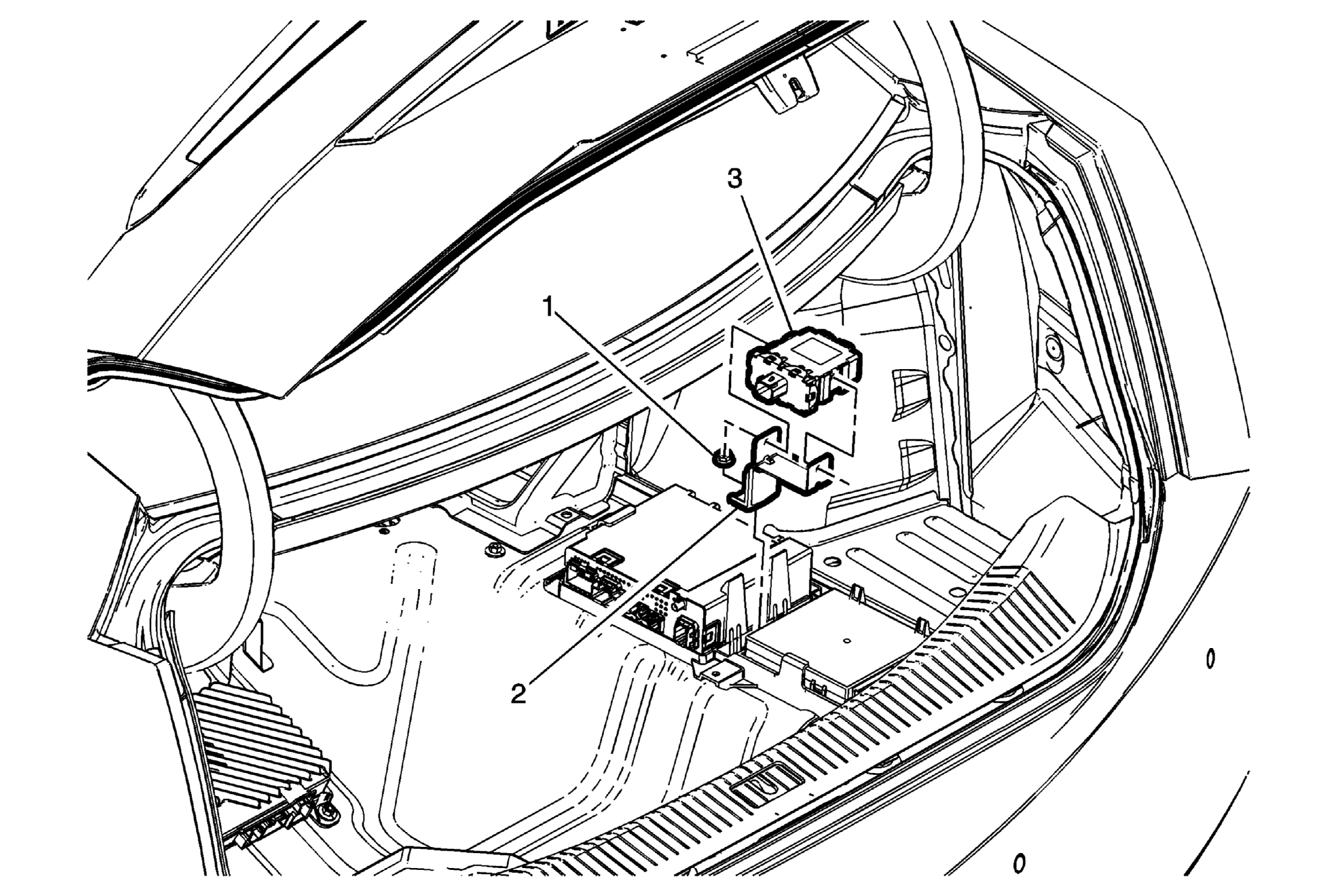

Fig 1: Pedestrian Sound Alert Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement . Reposition the rear portion of the rear compartment side trim panel - right side. Refer to Rear Compartment Side Trim Replacement - Right Side .
1	Pedestrian Sound Alert Module Fastener CAUTION: Refer to Fastener Caution .
2	Pedestrian Sound Alert Module Bracket
3	Pedestrian Sound Alert Module Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .
