Body Control Module Replacement

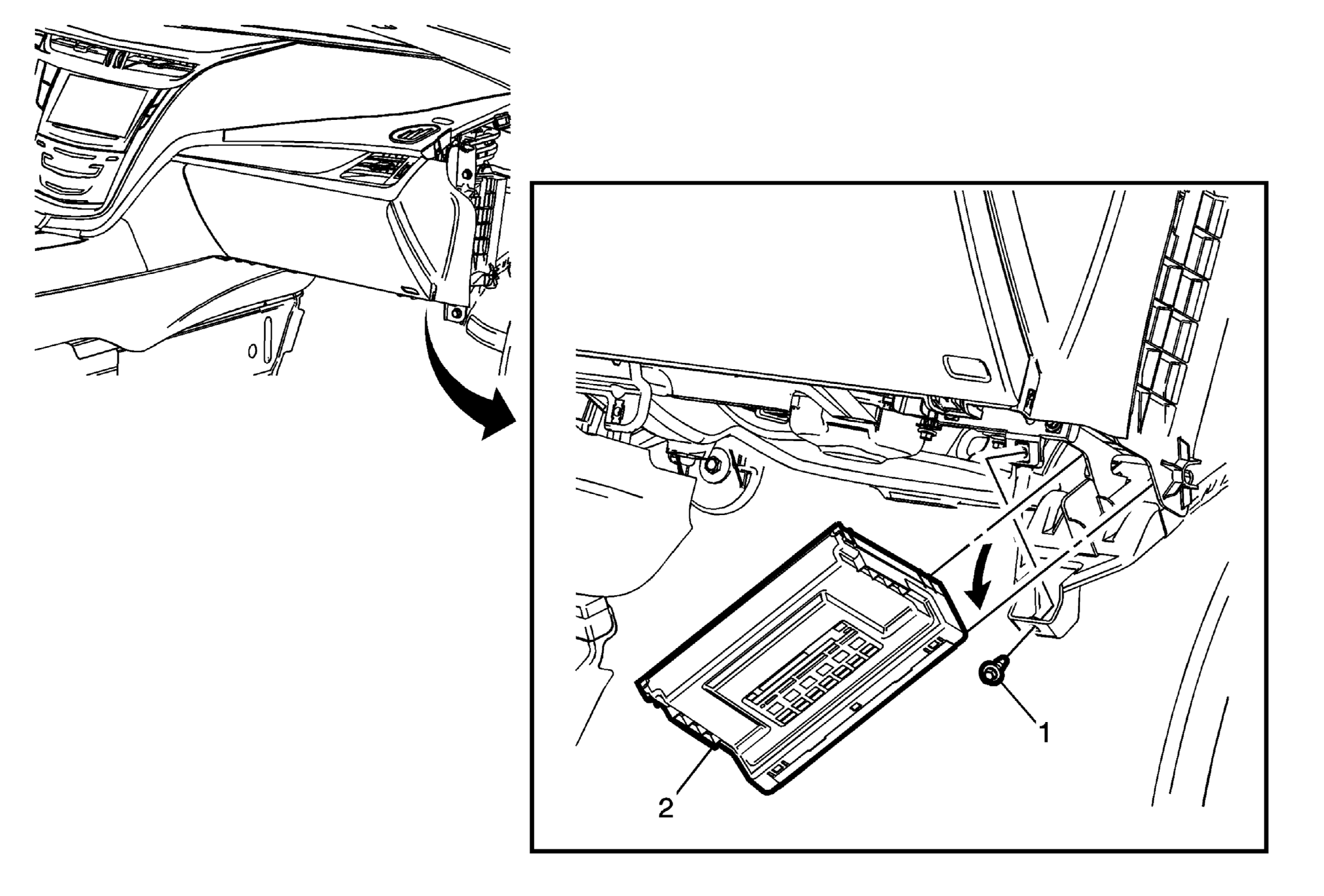

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel insulator - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Right Side .
1	Body Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Body Control Module Procedure Open the bottom of the hinged bracket and slide the module downward. Disconnect the electrical connections. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower trim panel insulator - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Right Side .

Body Control Module Bracket Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Body Control Module

Procedure
