Side Object Sensing Alert Module Replacement

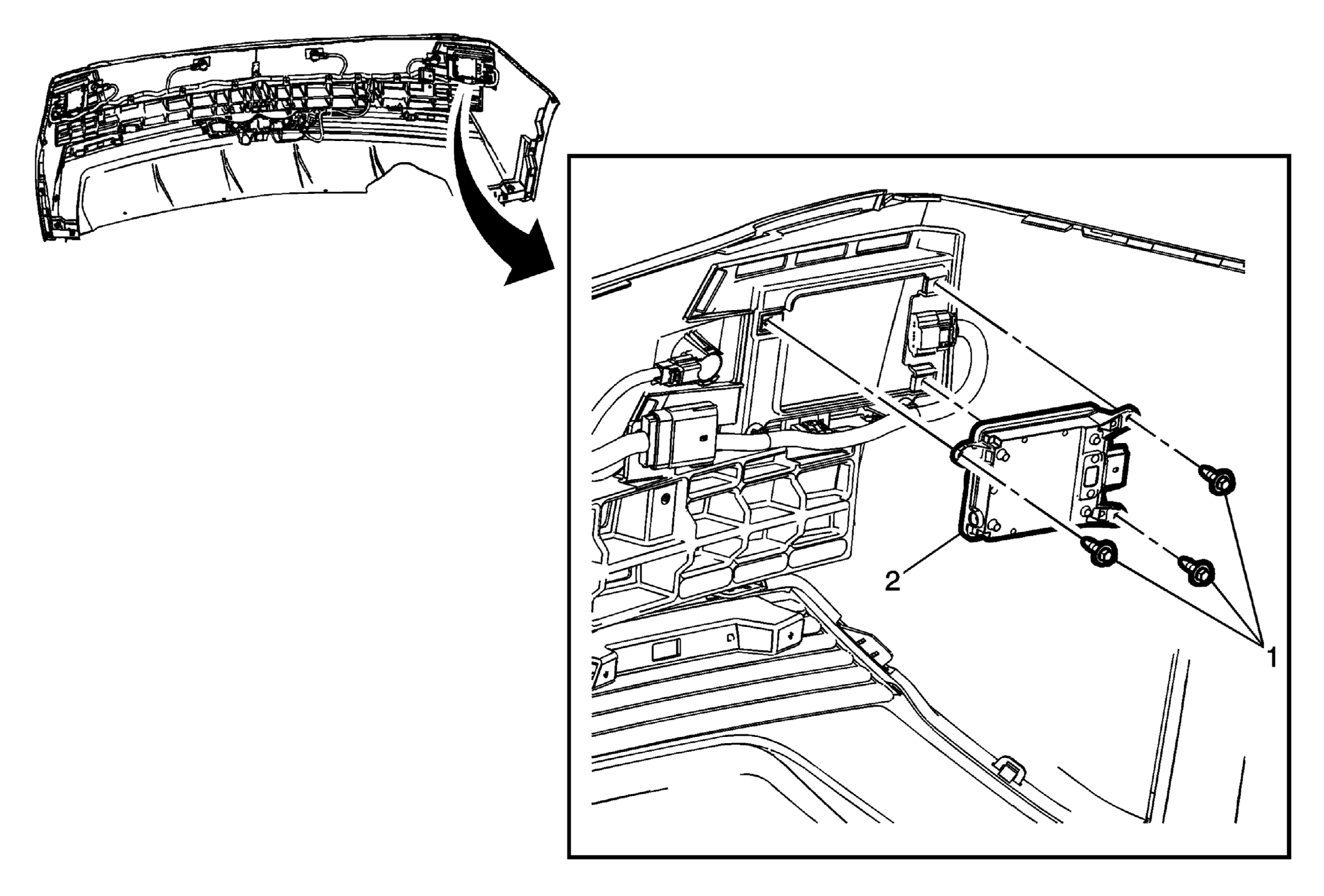

Fig 1: Side Object Sensing Alert Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Removal and Installation .
1	Side Object Sensing Alert Module Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Side Object Sensing Alert Module Procedure Disconnect the electrical connector. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Removal and Installation .

Side Object Sensing Alert Module Fasteners (Qty: 3)

CAUTION:

Side Object Sensing Alert Module

Procedure
