Human Machine Interface Control Module Replacement

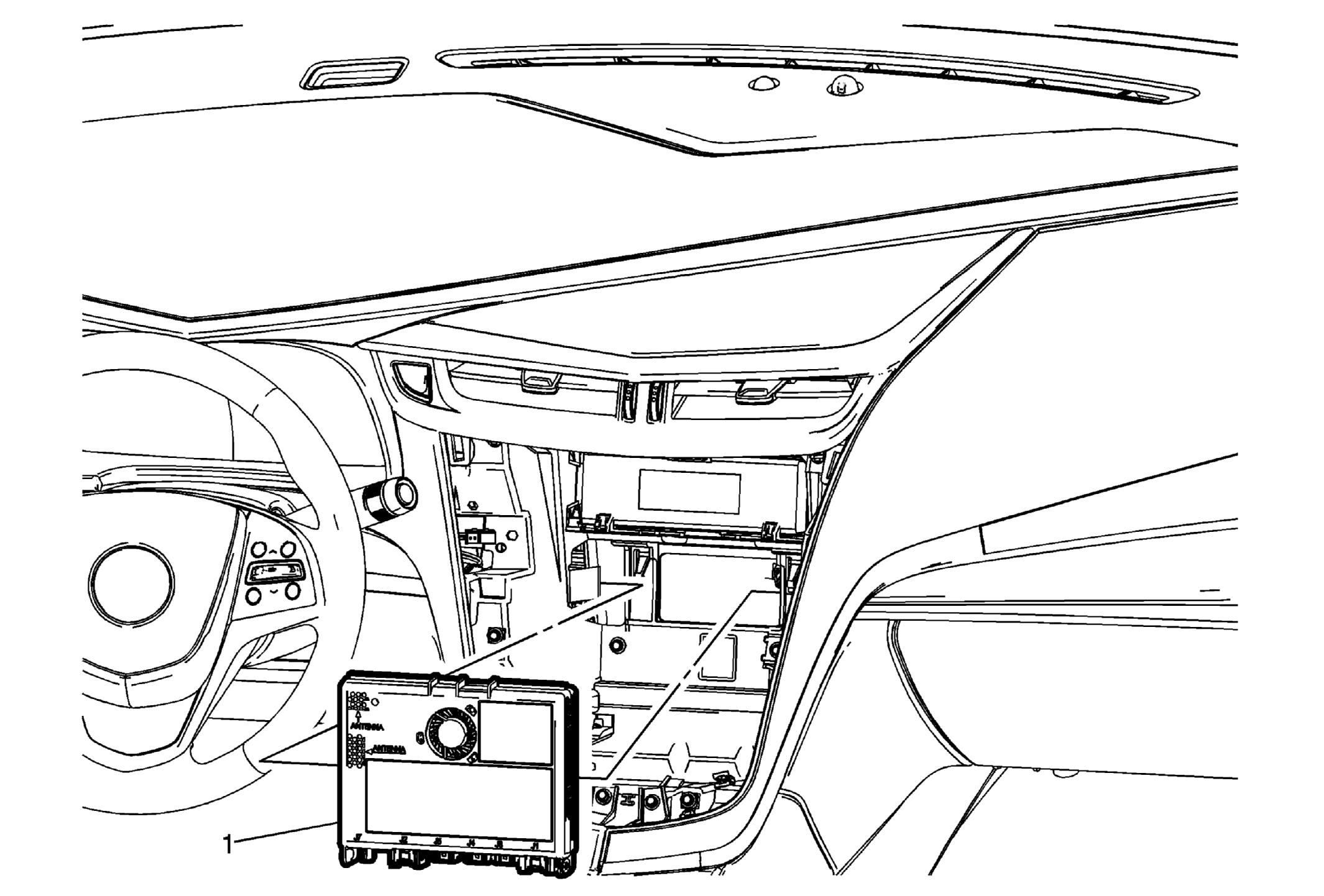

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1	Human Machine Interface Control Module Procedure Disconnect the electrical connections. Remove the module from the instrument panel bracket tabs. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .

Human Machine Interface Control Module

Procedure
