Garage Door Opener Transmitter Pushbutton Trim Plate Replacement

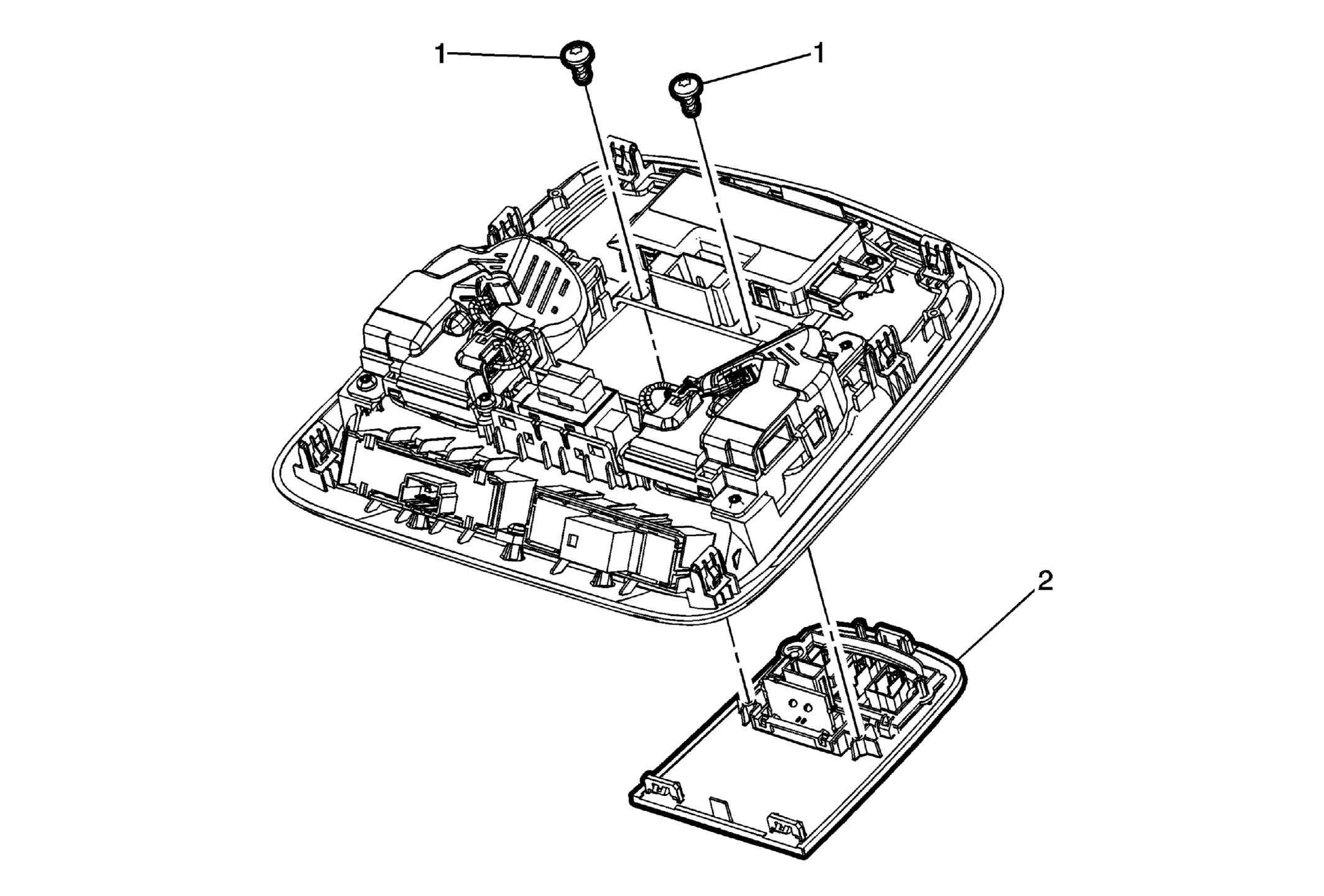

Fig 1: Garage Door Opener Transmitter Pushbutton Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the roof console. Refer to Roof Console Replacement .
1	Garage Door Opener Transmitter Pushbutton Trim Plate Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Garage Door Opener Transmitter Pushbutton Trim Plate Procedure  When replacing the trim plate, transfer all necessary components.
