Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Front)

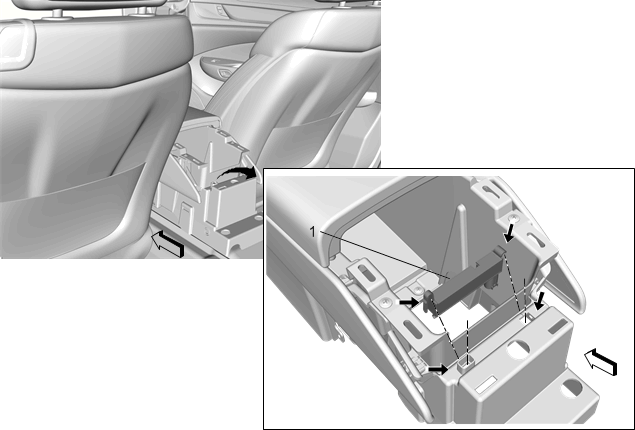

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console (Front)
GM3781881Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear floor console. Refer to Rear Floor Console Replacement .
  2. Remove the drive motor battery high voltage manual disconnect lever. Apply high voltage tape over the disconnect receptacle openings to prevent debris from entering or unintended contact. Refer to Drive Motor Battery High Voltage Manual Disconnect Lever Replacement .
1 Ignition Lock Key Transmitter Antenna

Procedure

  1. Reach into the opening in the rear console and grasp the ignition key lock transmitter.
  2. Using an appropriate flat bladed tool, release the retainer from the top side.
  3. Rotate the ignition key lock transmitter downward to unhook it from the console.
  4. Disconnect the ignition key lock transmitter and remove it from the console.
