Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

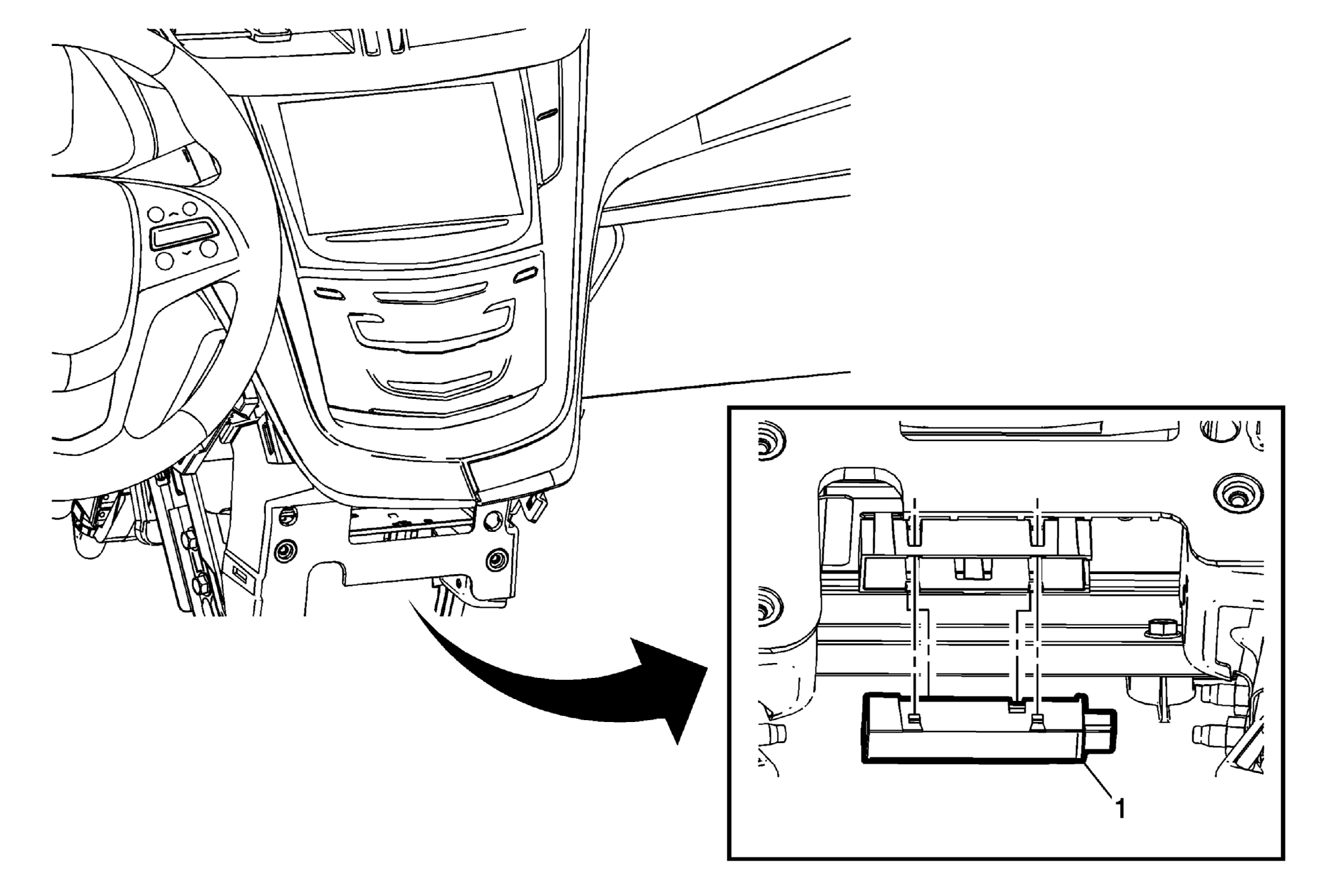

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connector. Unsnap antenna from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement .

Ignition Lock Key Transmitter Antenna

Procedure
