Keyless Entry Control Module Replacement

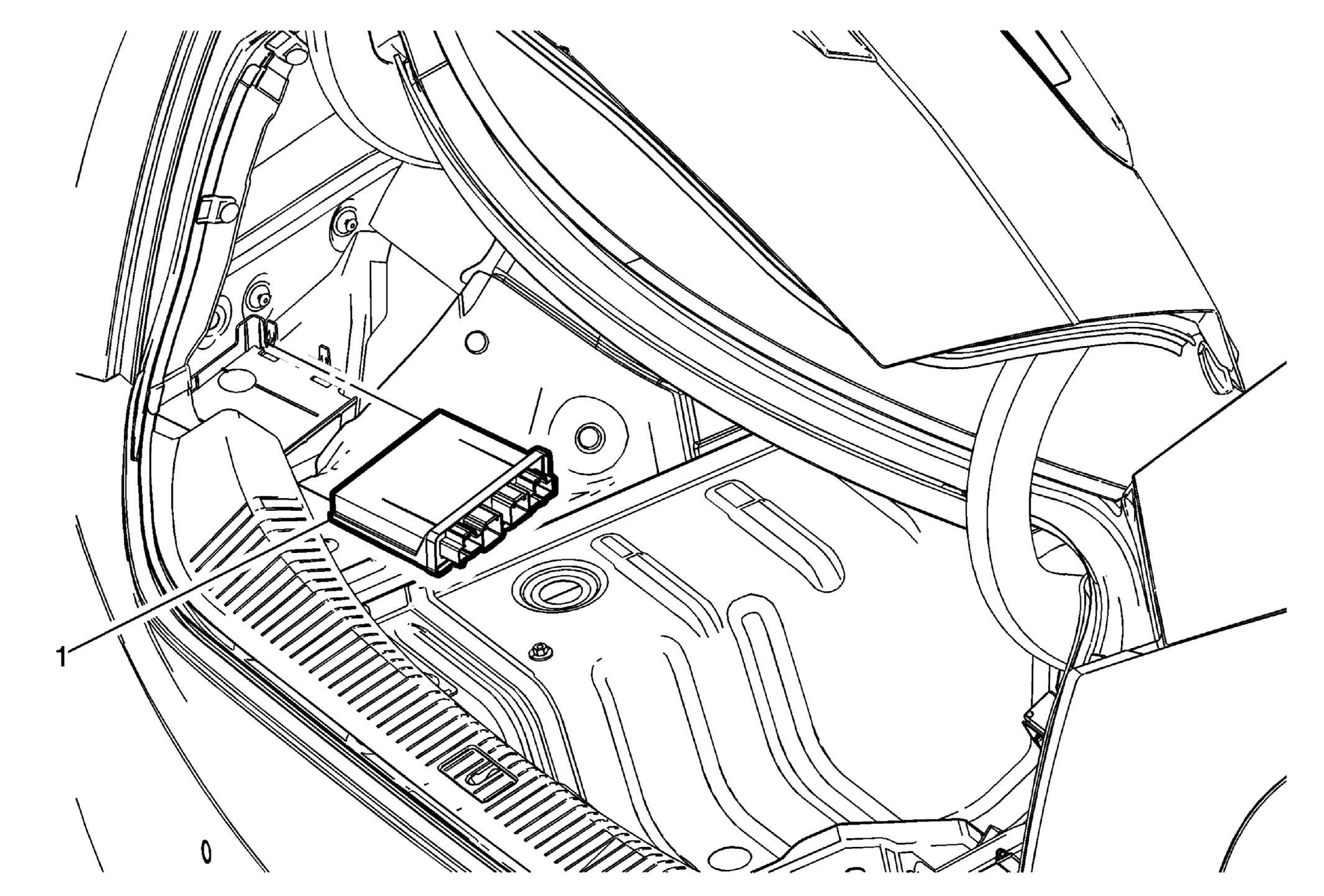

Fig 1: Keyless Entry Control Module

GM3611056

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement .
Reposition the rear portion of the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side .

1

Keyless Entry Control Module

Procedure

Disconnect the electrical connectors.
Release module from retaining tabs on bracket.
For programming and set up information, refer to Control Module References .
