Remote Control Door Lock Receiver Replacement

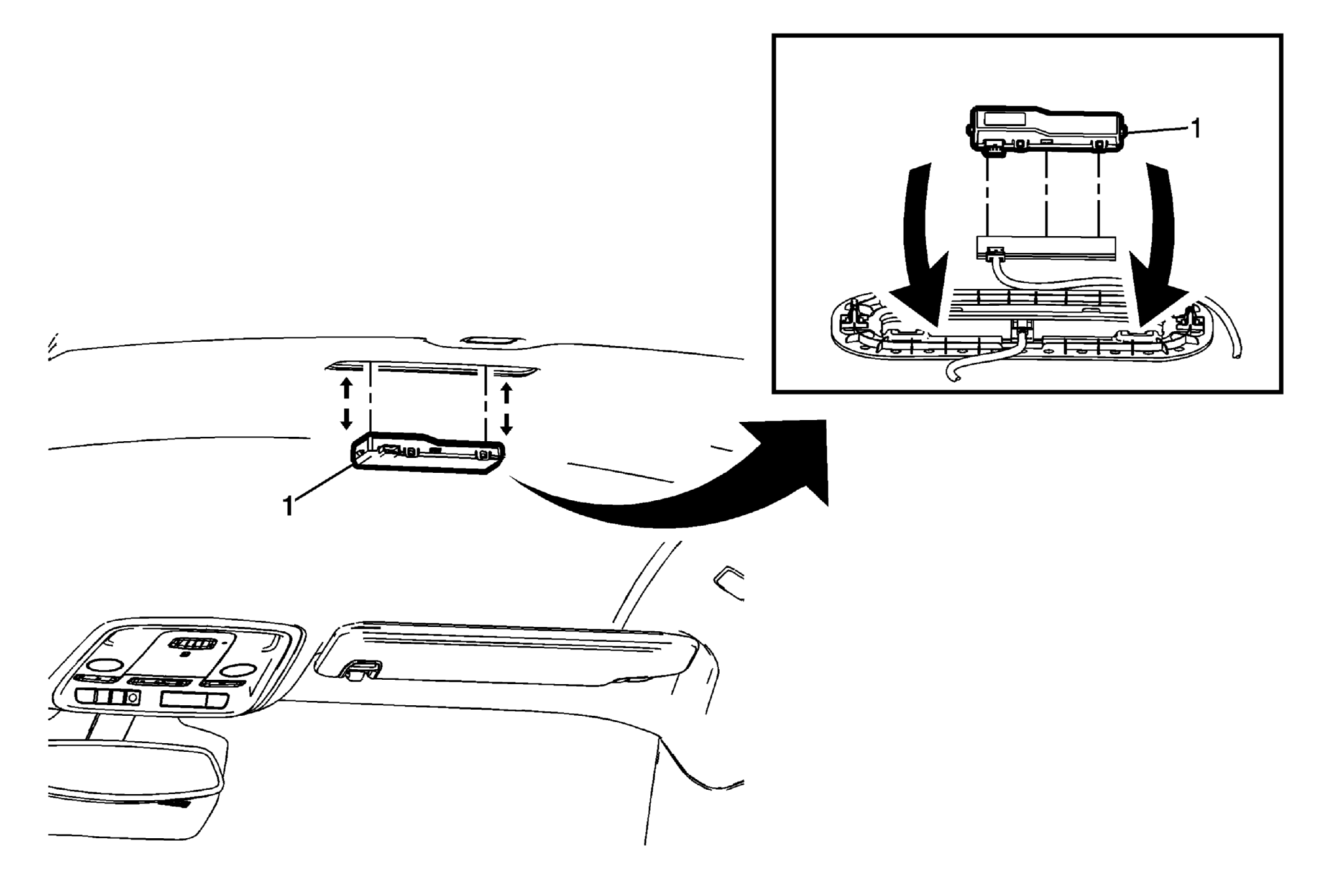

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the center reading lamp. Refer to Center Reading Lamp Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Gently detach the receiver secured by tape from the headlining trim panel and remove through the lamp opening in the headliner. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the center reading lamp. Refer to Center Reading Lamp Replacement .

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Gently detach the receiver secured by tape from the headlining trim panel and remove through the lamp opening in the headliner.
For programming and set up, refer to Control Module References .
