Outside Rearview Mirror Memory Module Replacement

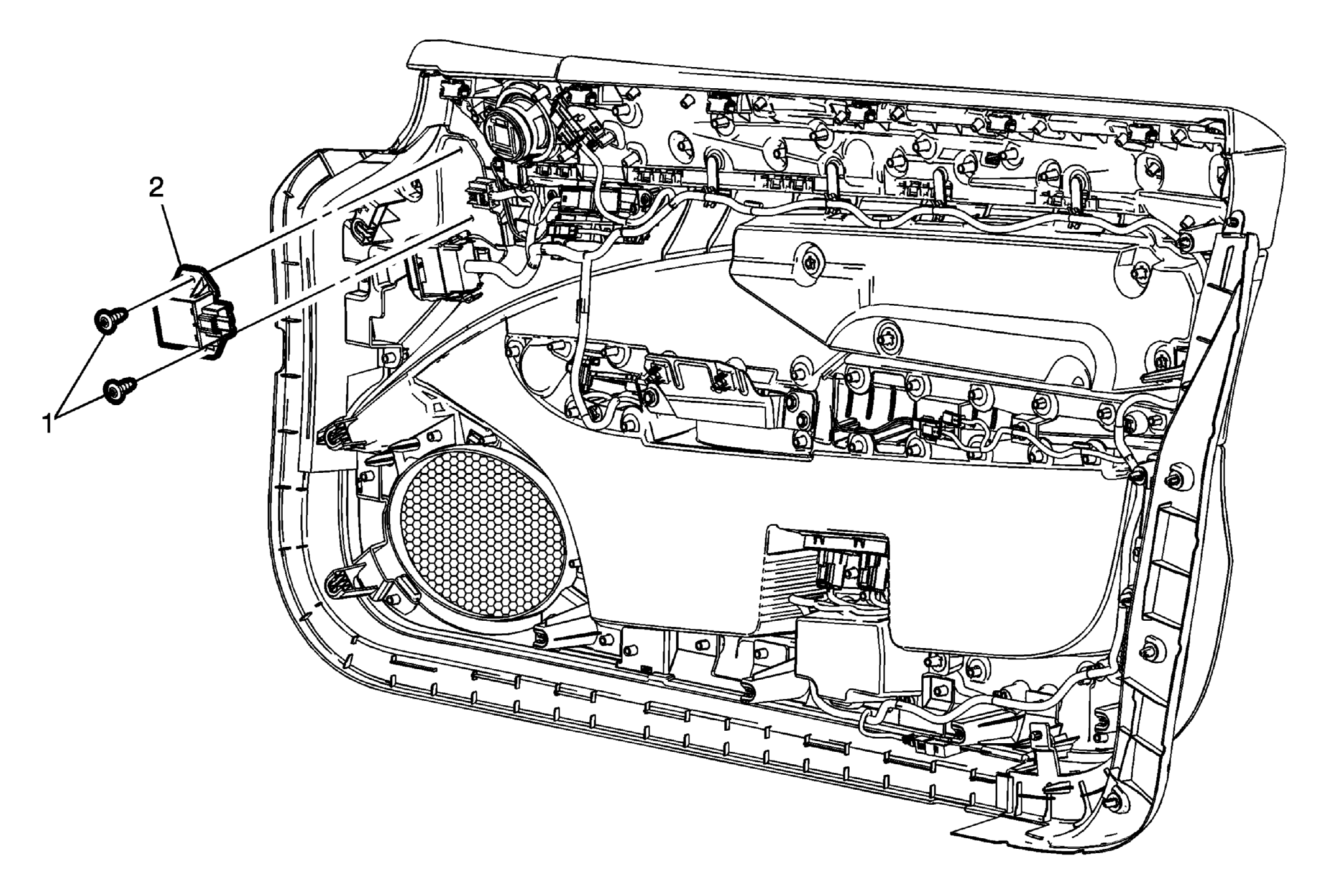

Fig 1: Outside Rearview Mirror Memory Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
1	Outside Rearview Mirror Memory Module Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Outside Rearview Mirror Memory Module Procedure  Disconnect electrical connector.
