Cadillac
>>
2016
>>
ELR
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Plug-In Charging System
>>
Schematic Wiring Diagrams
>>
Plug-In Charging Wiring Schematics
>>
Battery Charger
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Battery Charger

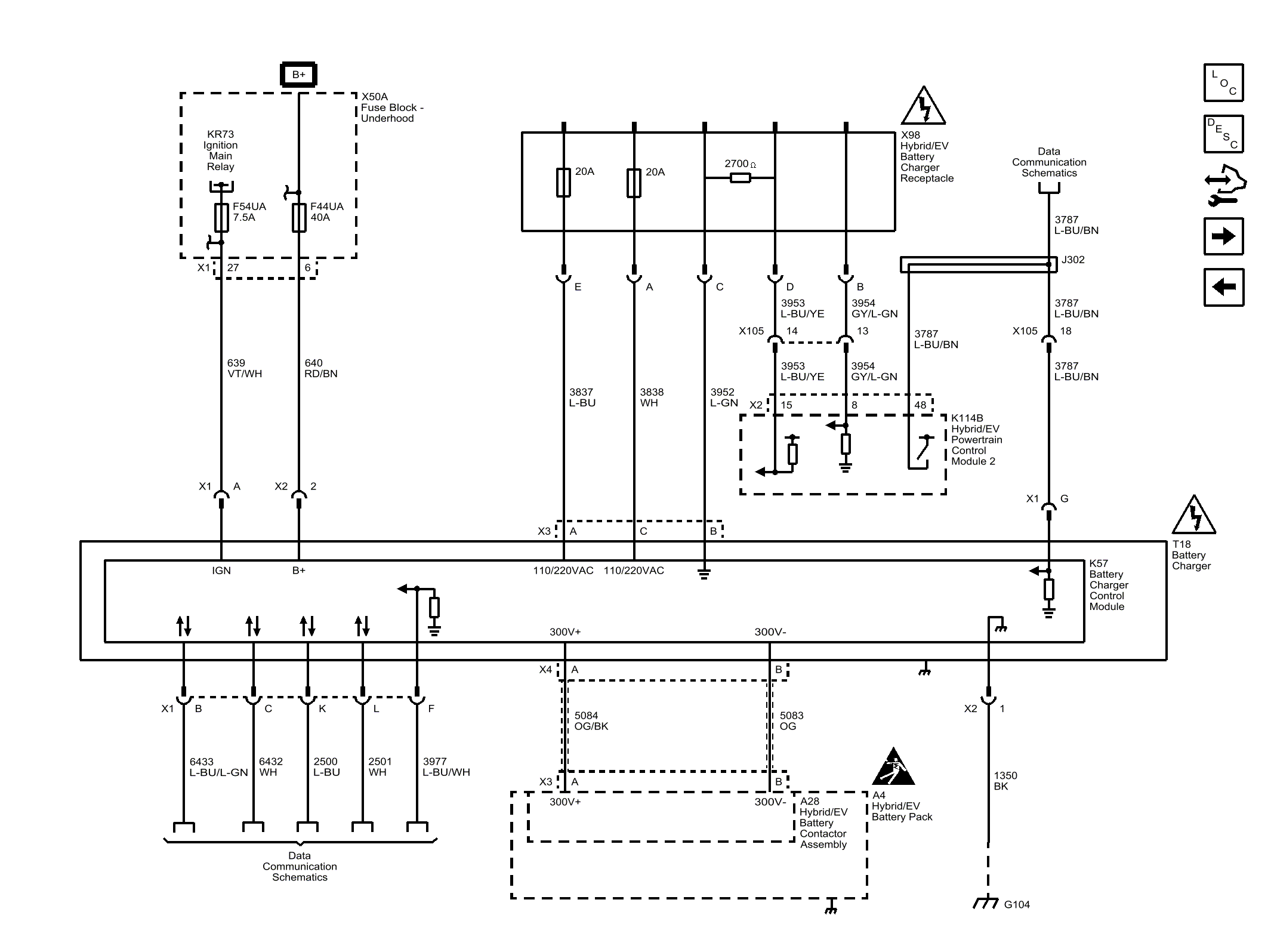

Fig 1: Battery Charger
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
