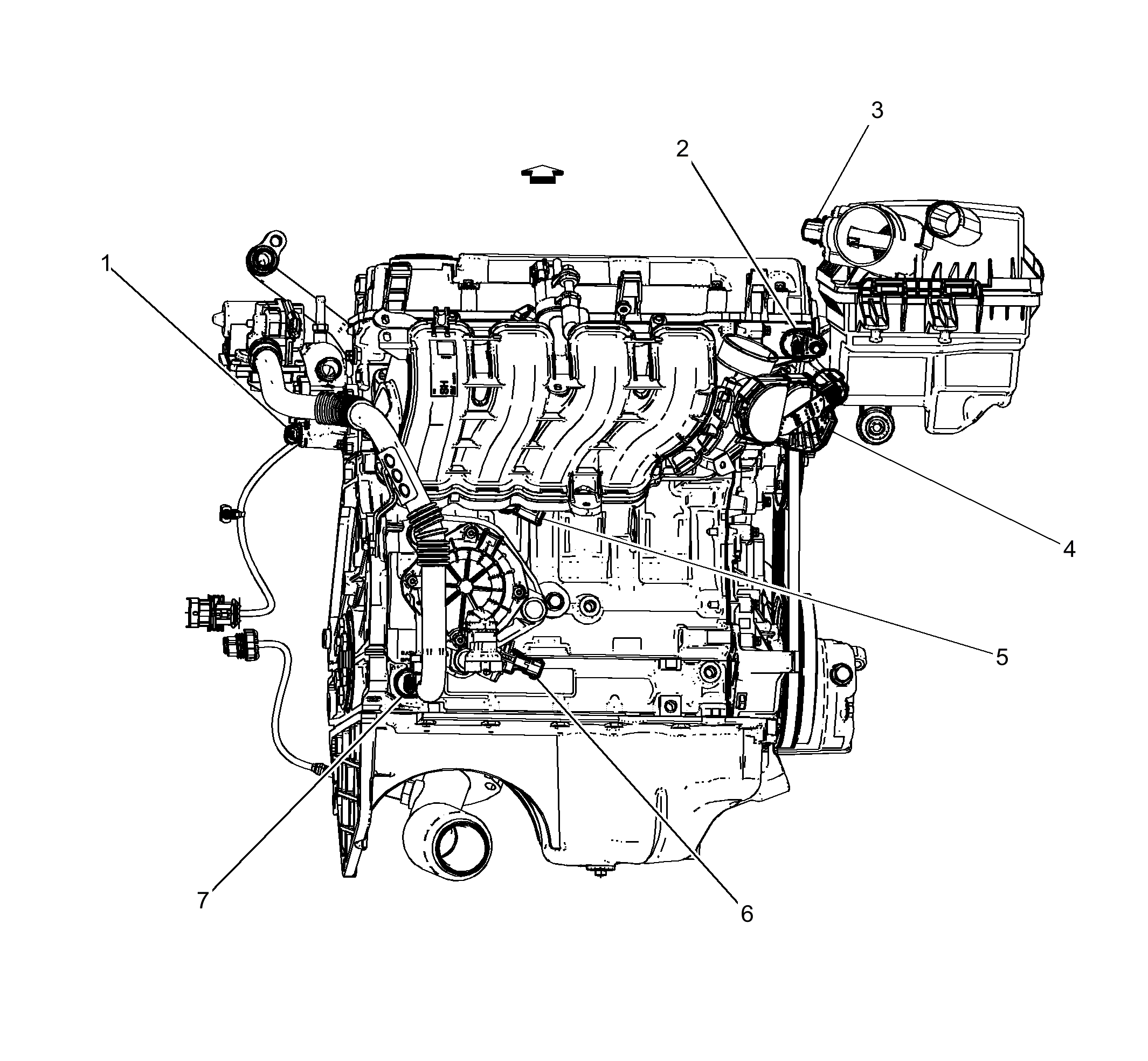

Left Rear of Engine Components
Left Rear of Engine Components
| Items |
|---|
| 1. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 2. B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
| 3. B75B Mass Air Flow/Intake Air Temperature Sensor B75B Mass Air Flow/Intake Air Temperature Sensor |
| 4. Q38 Throttle Body Q38 Throttle Body |
| 5. B68 Knock Sensor B68 Knock Sensor |
| 6. G21 Secondary Air Injection Pump (NU6) G21 Secondary Air Injection Pump |
| 7. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
