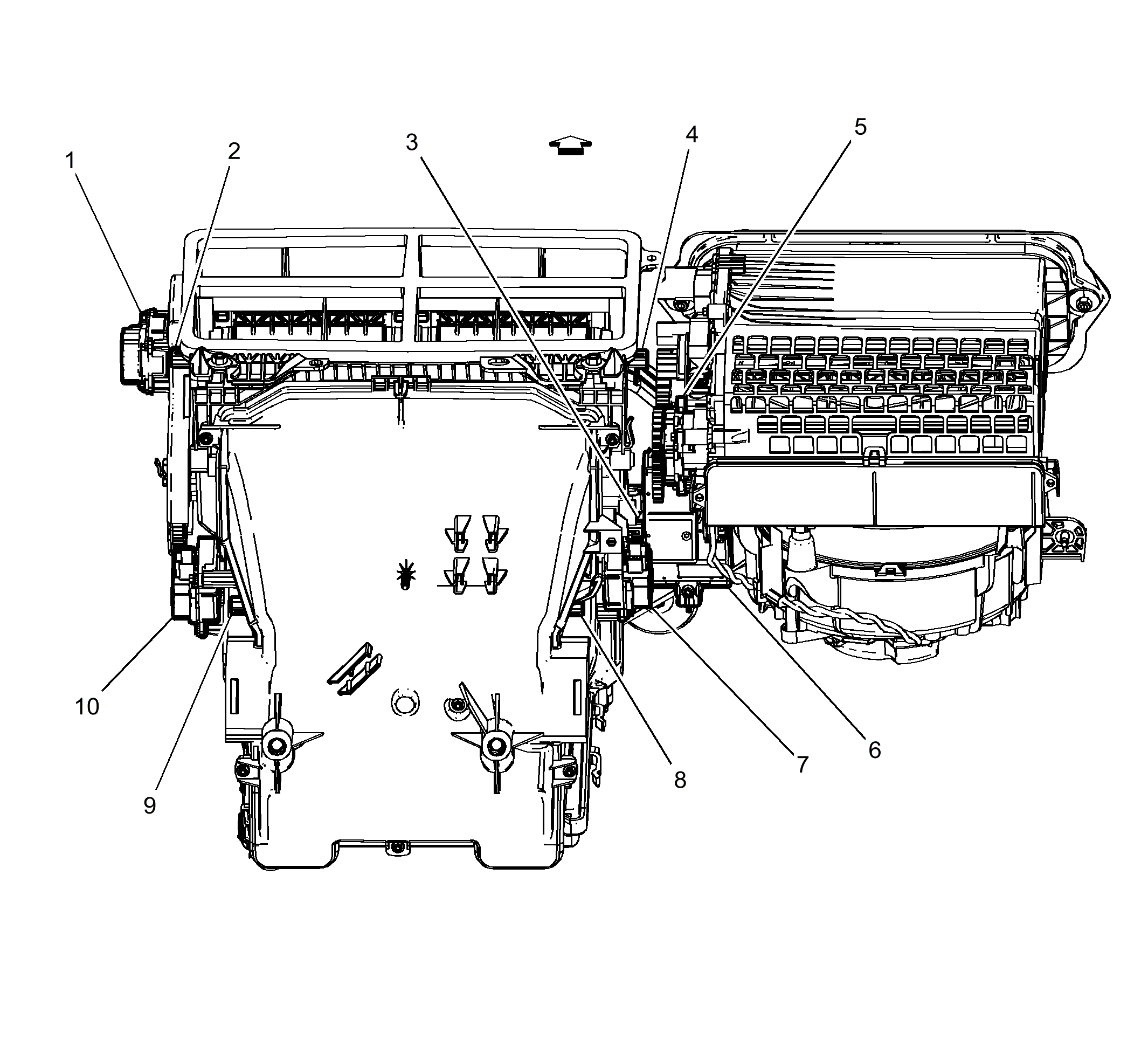

Instrument Panel - HVAC Components
Instrument Panel - HVAC Components
| Items |
|---|
| 1. M37 Mode Door Actuator M37 Mode Door Actuator |
| 2. B7H Air Temperature Sensor - Duct Left Upper B7H Air Temperature Sensor - Duct Left Upper |
| 3. B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
| 4. B7J Air Temperature Sensor - Duct Right Upper B7J Air Temperature Sensor - Duct Right Upper |
| 5. M46 Air Recirculation Door Actuator M46 Air Recirculation Door Motor |
| 6. K8 Blower Motor Control Module K8 Blower Motor Control Module X1K8 Blower Motor Control Module X2 |
| 7. M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right |
| 8. B7E Air Temperature Sensor - Duct Right Lower B7E Air Temperature Sensor - Duct Right Lower |
| 9. B7D Air Temperature Sensor - Duct Left Lower B7D Air Temperature Sensor - Duct Left Lower |
| 10. M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left |
