Steering Wheel Heat Control Module Replacement

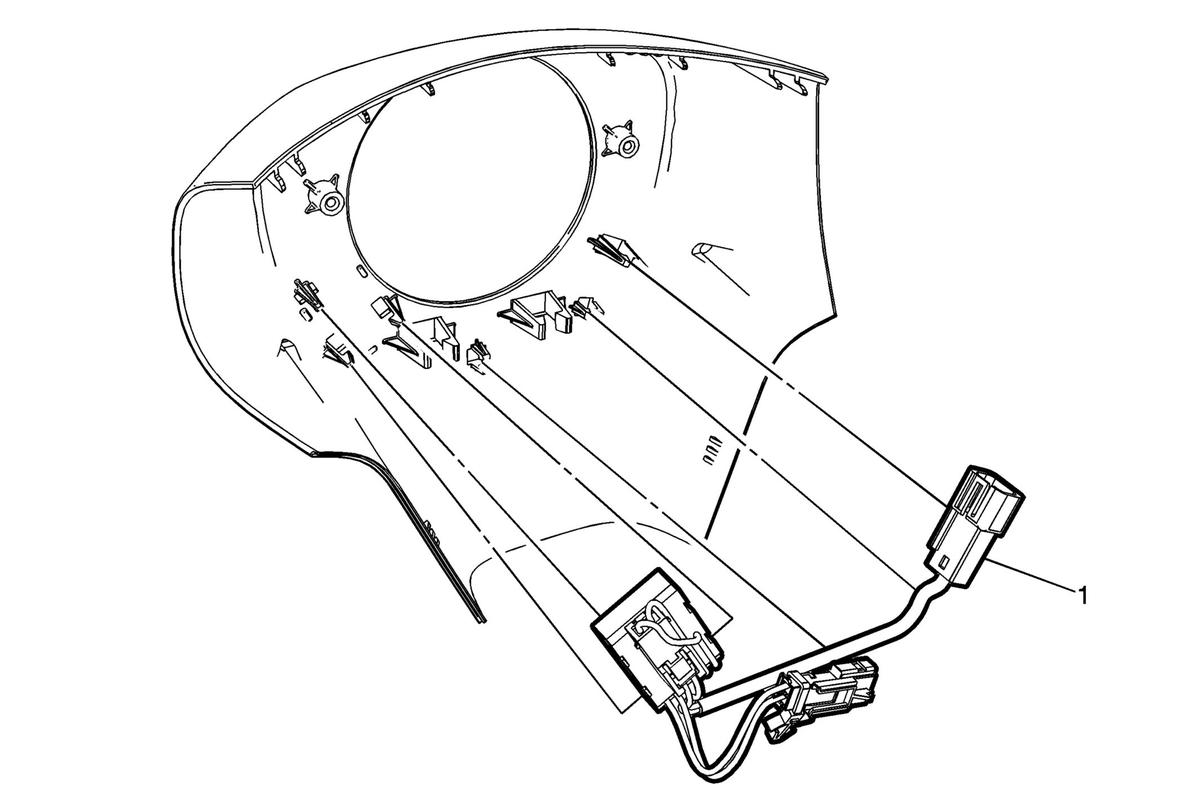

Fig 1: Steering Wheel Heat Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering wheel shroud. Refer to Steering Wheel Shroud Replacement .
1	Steering Wheel Heat Control Module Procedure Release the retaining tabs and remove the steering wheel heat control module from the steering wheel shroud.
