Peripheral Human Machine Interface Control Module Replacement

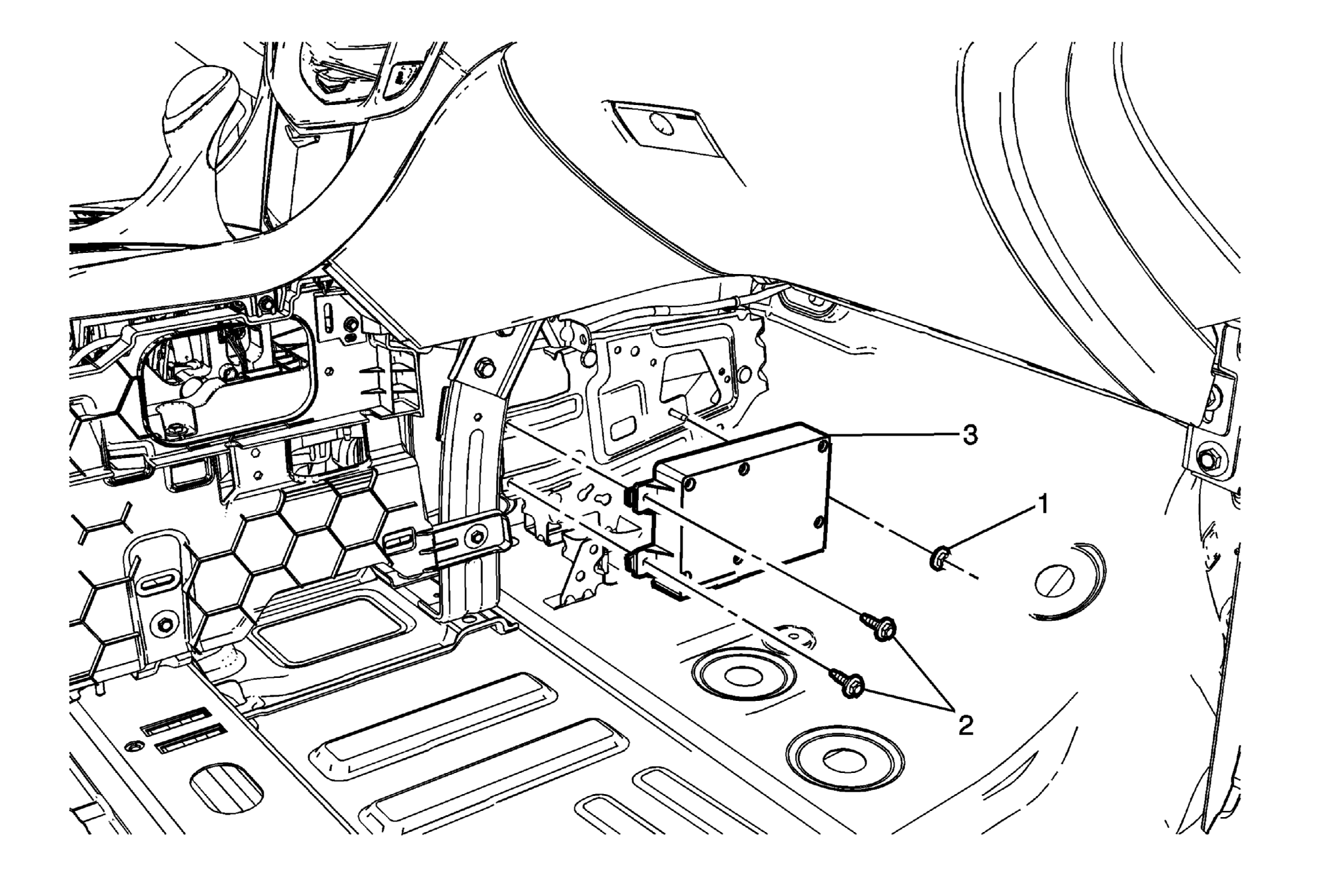

Fig 1: Communication Interface Module & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Replacement
1	Peripheral Human Machine Interface Control Module Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Peripheral Human Machine Interface Control Module Bracket Bolt (Qty: 2) Tighten 9 N.m (80 lb in)
3	Peripheral Human Machine Interface Control Module Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures, if required.
