Remote Control Door Lock Receiver Replacement

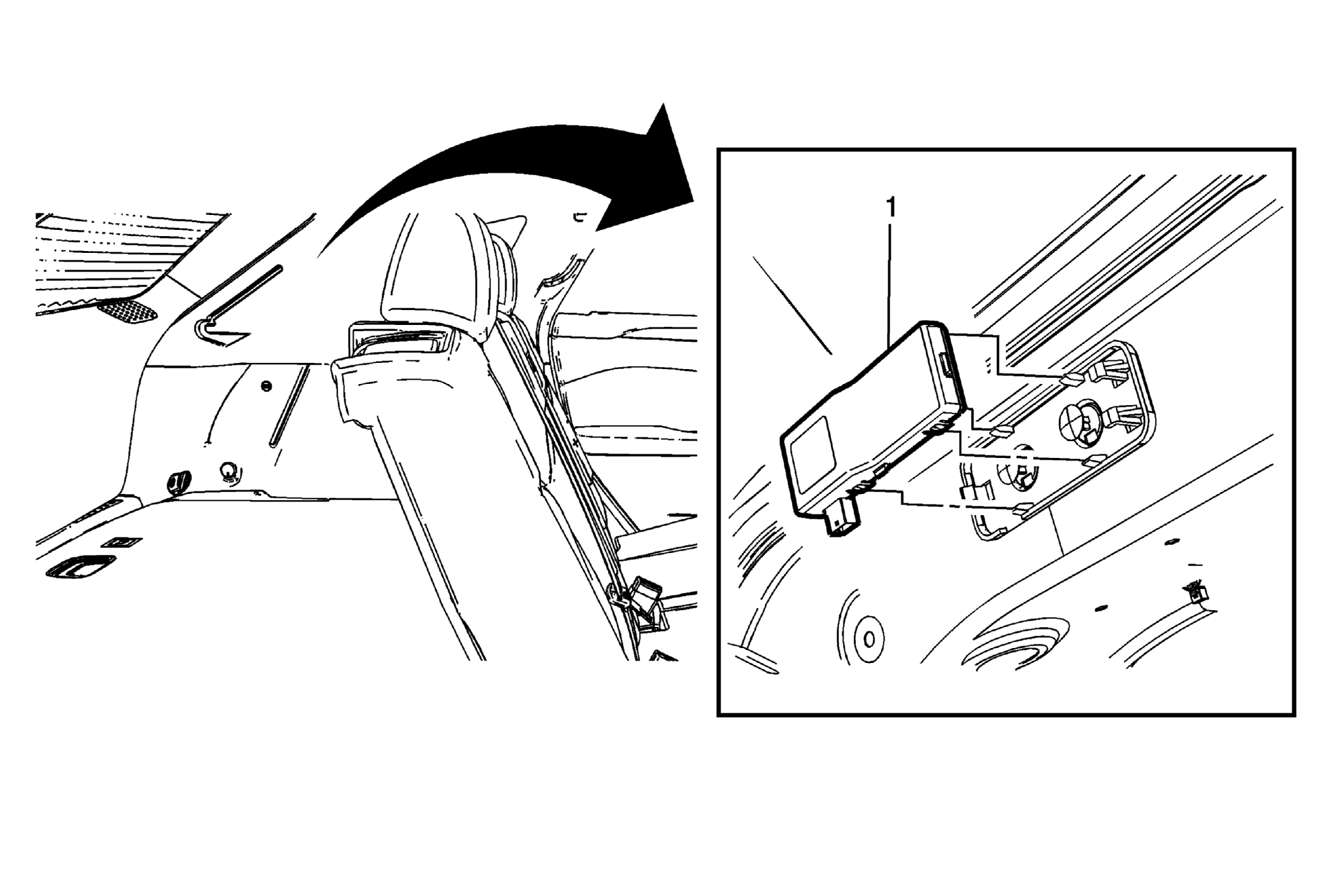

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure NOTE: The Quarter Upper Trim Panel only needs to be repositioned to gain access to the Remote Control door Lock Receiver. The seat belt does not need to be removed from the panel. Reposition the quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Release receiver from tabs on bracket. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure

NOTE:

The Quarter Upper Trim Panel only needs to be repositioned to gain access to the Remote Control door Lock Receiver. The seat belt does not need to be removed from the panel.

Reposition the quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement .

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Release receiver from tabs on bracket.
For programming and set up, refer to Control Module References .
