Theft Deterrent Module Replacement

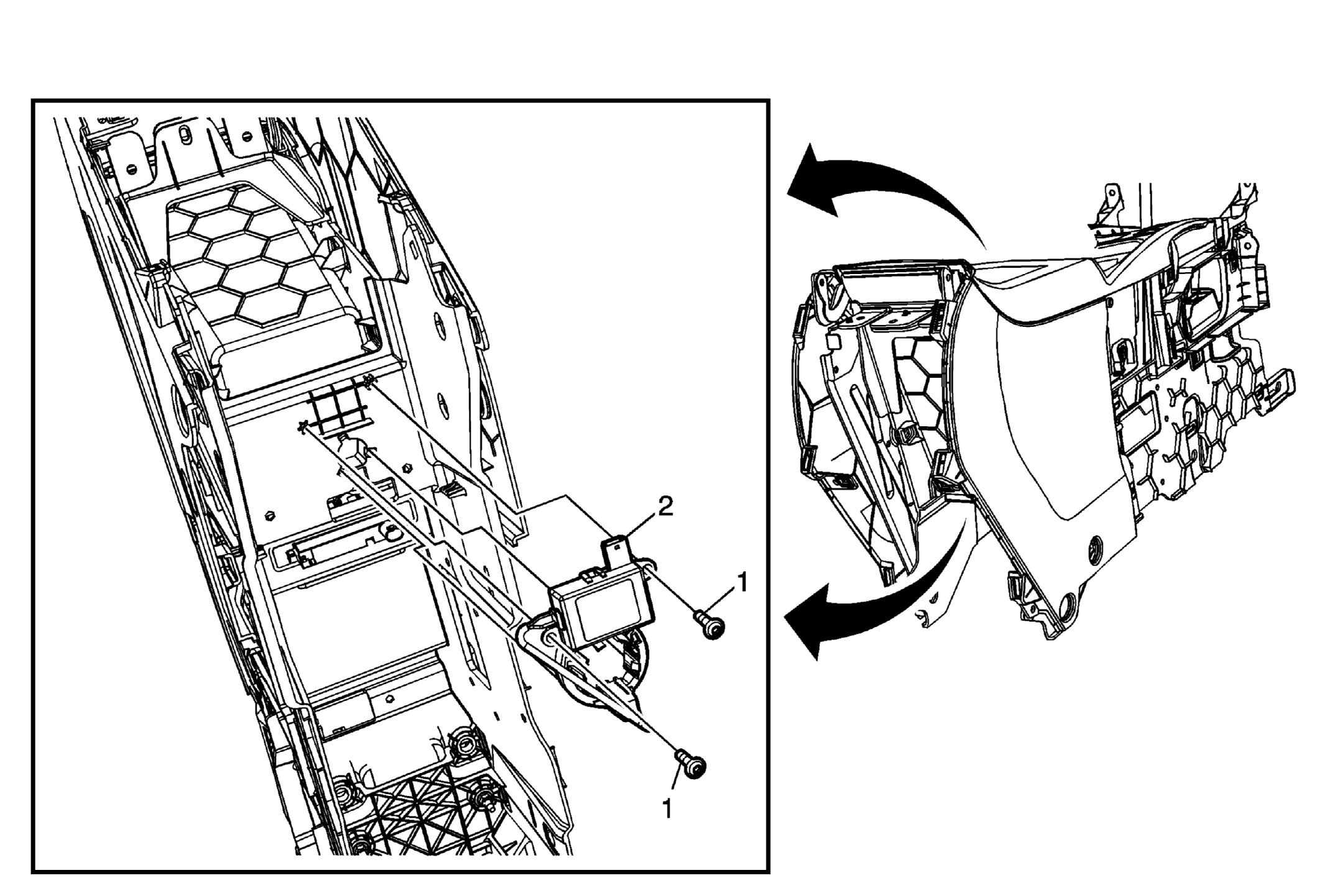

Fig 1: Theft Deterrent Module & Bolts

GM2232761

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the front floor console. Refer to Front Floor Console Replacement .
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .

1

Theft Deterrent Module Bolt/Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

2

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Disengage tabs and slide through opening.
Refer to Control Module References for programming and set up procedures.
