Floor Console Components

Floor Console Components

Items
1. S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console
2. X80D Accessory Power Receptacle - Center Console Compartment X80G Accessory Power Receptacle - Instrument Panel
3. X83 Auxiliary Audio Input X83 Auxiliary Audio Input
4. S3 Transmission Shift Lever S3 Transmission Shift Lever
5. B81B Park Position Switch
6. M7 Transmission Shift Lock Control Solenoid Actuator
7. S91 Park Brake Control Switch S91 Park Brake Control Switch
8. P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator

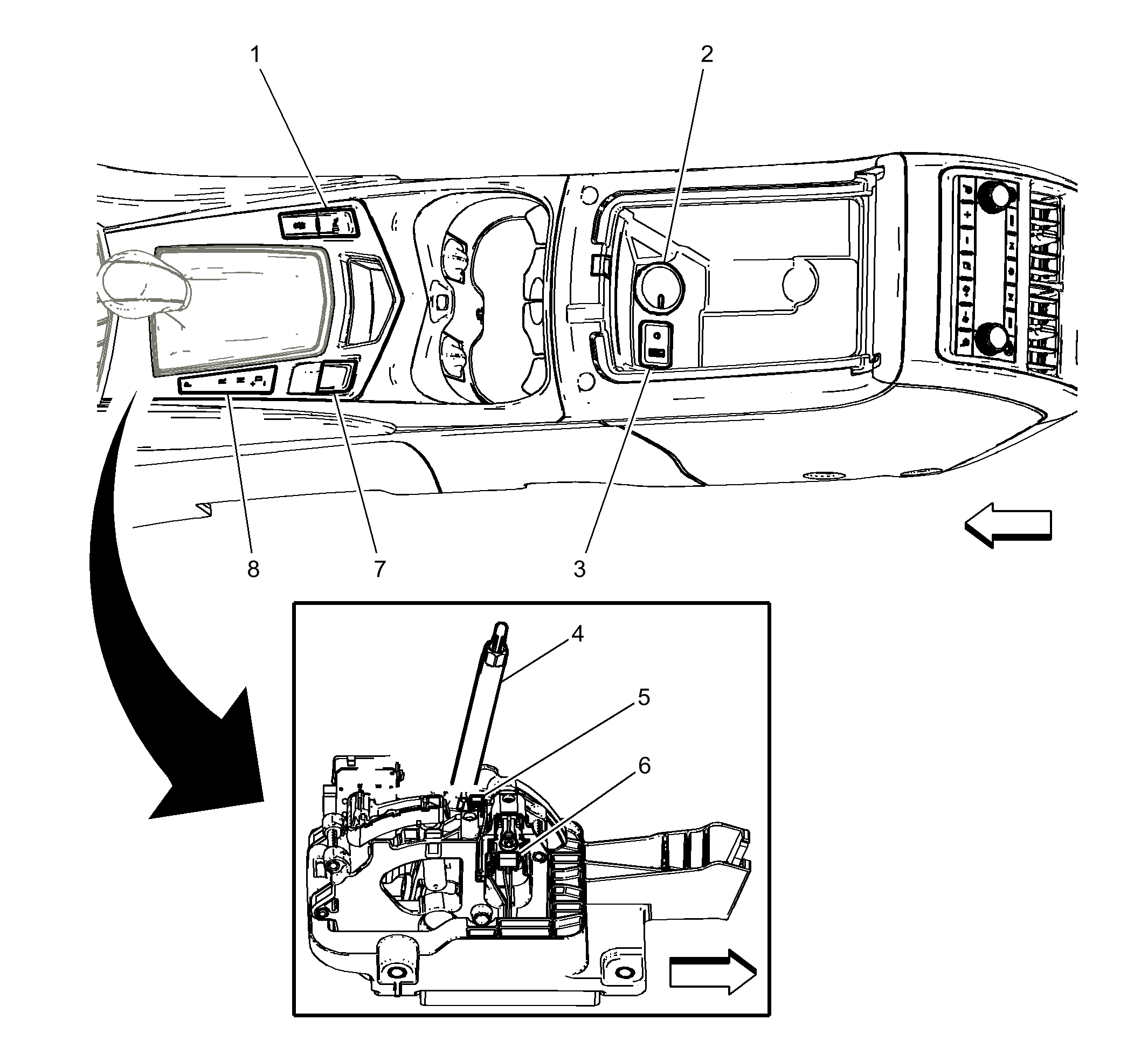

Fig 1: Floor Console Components
GM2296969Courtesy of GENERAL MOTORS COMPANY
