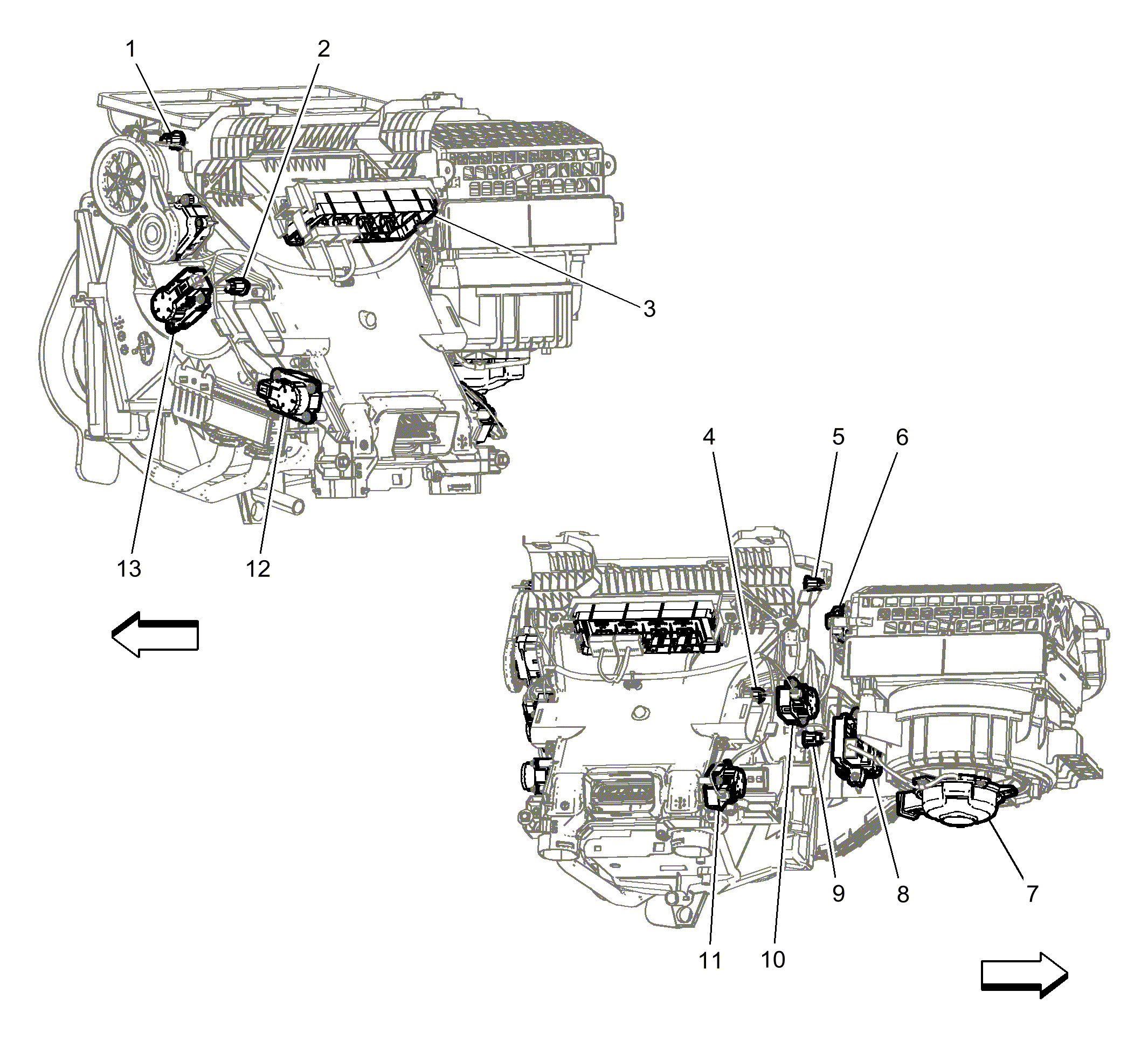

| 1. B7H Air Temperature Sensor - Duct Left Upper B7H Air Temperature Sensor - Duct Left Upper |
| 2. B7D Air Temperature Sensor - Duct Left Lower B7D Air Temperature Sensor - Duct Left Lower |
| 3. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3K33 HVAC Control Module X4 |
| 4. B7E Air Temperature Sensor - Duct Right Lower B7E Air Temperature Sensor - Duct Right Lower |
| 5. B7J Air Temperature Sensor - Duct Right Upper B7J Air Temperature Sensor - Duct Right Upper |
| 6. M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator |
| 7. M8 Blower Motor M8 Blower Motor |
| 8. K8 Blower Motor Control Module K8 Blower Motor Control ModuleK8 Blower Motor Control Module |
| 9. B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
| 10. M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right |
| 11. M37 Mode Door Actuator M37 Mode Door Actuator |
| 12. M6B Air Temperature Door Actuator - Auxiliary (CJ4) M6B Air Temperature Door Actuator - Auxiliary (CJ4) |
| 13. M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left |
