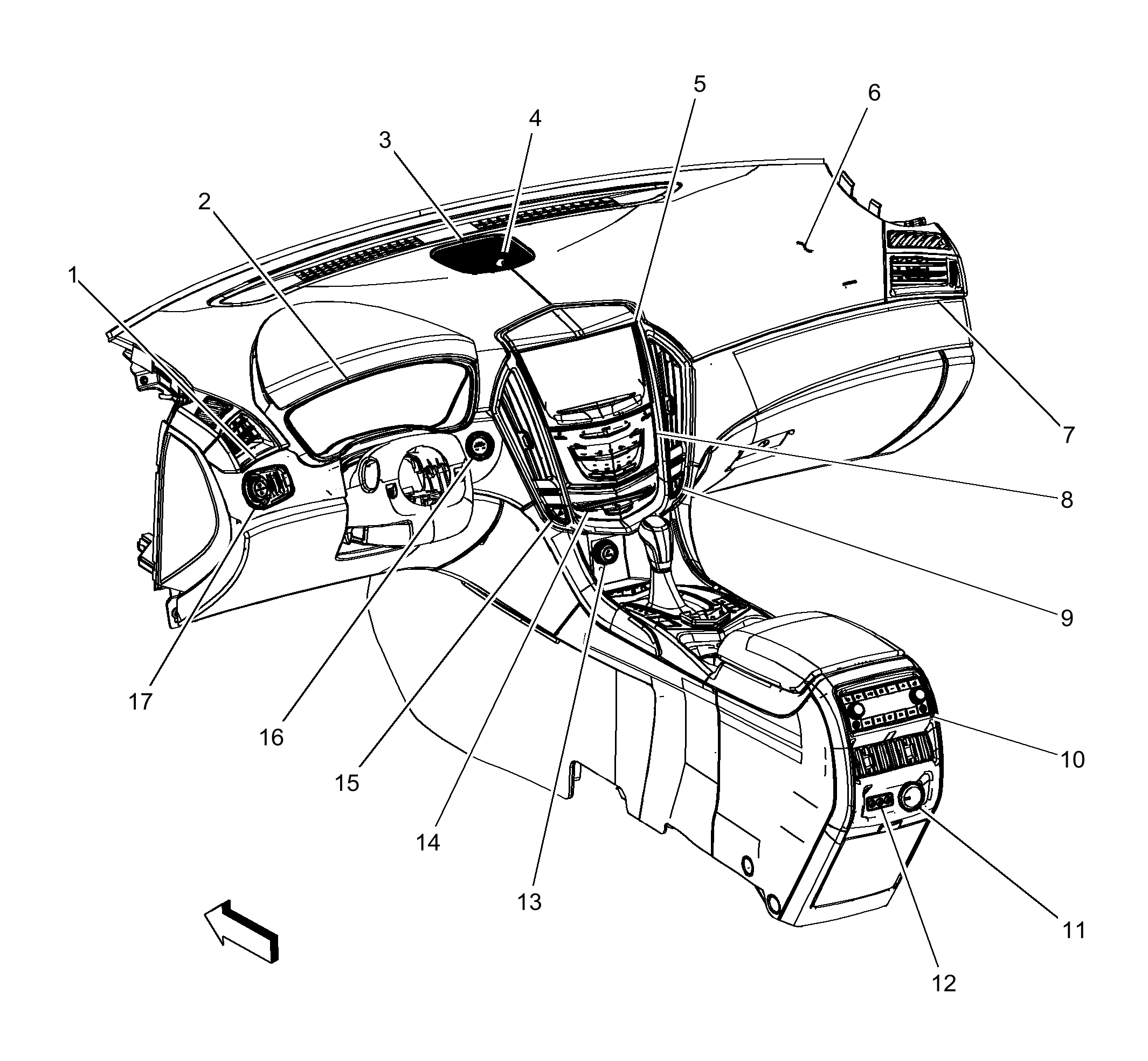

Instrument Panel and Console Components
Instrument Panel and Console Components
| Items |
|---|
| 1. E1G Accent Lamp - Left Instrument Panel (TSQ) E1G Accent Lamp - Left Instrument Panel |
| 2. P16 Instrument Cluster P16 Instrument Cluster |
| 3. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel |
| 4. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 5. P17 Info Display Module P17 Info Display Module |
| 6. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2 |
| 7. E1H Accent Lamp - Right Instrument Panel (TSQ) E1H Accent Lamp - Right Instrument Panel |
| 8. A20 Radio/HVAC Controls |
| 9. S75 Traction Control Switch |
| 10. K33A HVAC Control Module - Auxiliary K33A HVAC Control Module - Auxiliary |
| 11. X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1 |
| 12. X82 Audio/Video Input Adapter (UWG) X82 Audio/Video Input Adapter |
| 13. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 14. A33 Media Disc Player (UWG) A33 Media Disc Player X1 (-UWG)A33 Media Disc Player X1 (UWG) |
| 15. S26 Hazard Warning Switch |
| 16. S38 Ignition Mode Switch S38 Ignition Mode Switch |
| 17. S30 Headlamp Switch S30 Headlamp Switch |
