Powertrain Expansion Bus

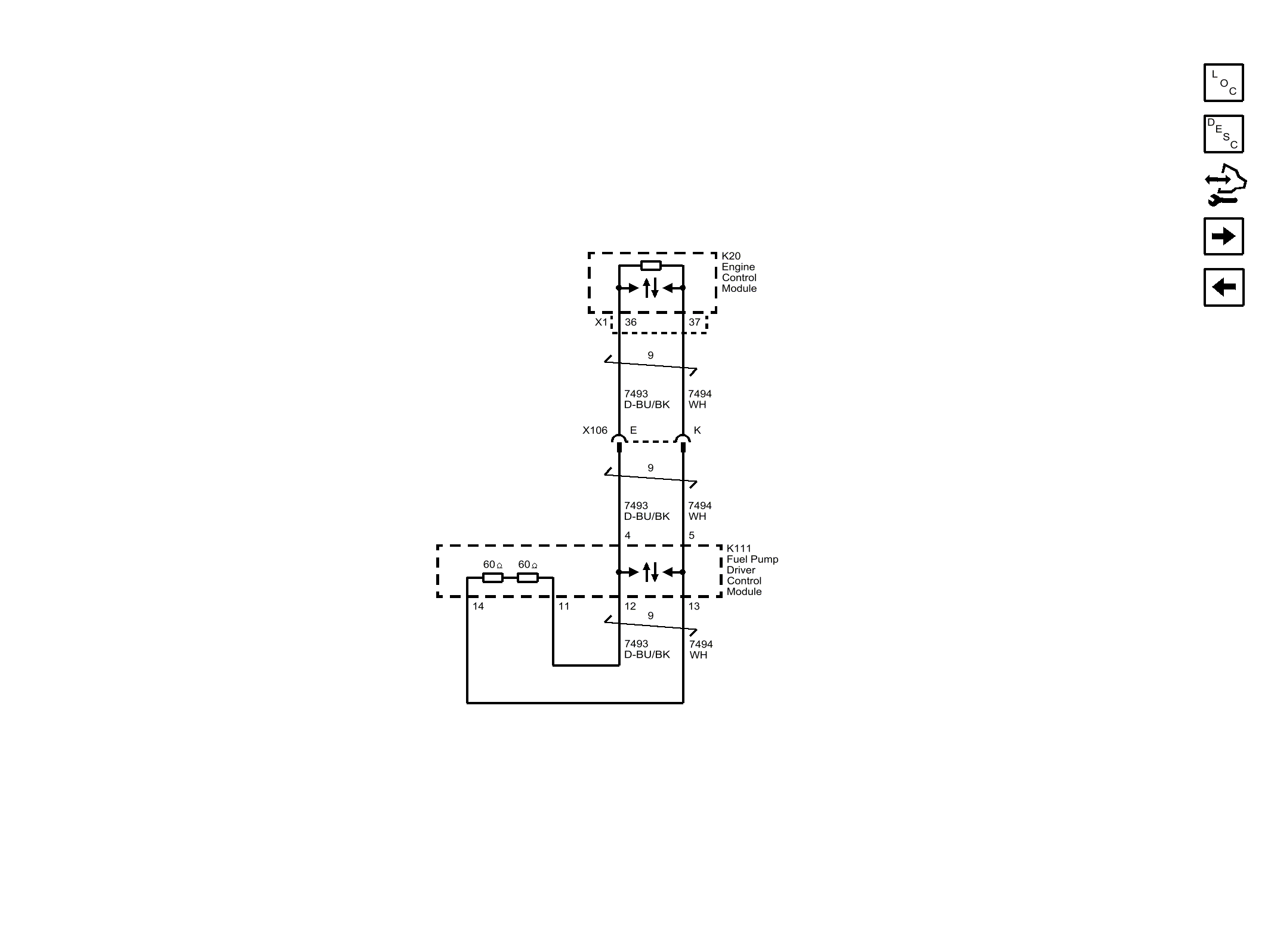

Fig 1: Powertrain Expansion Bus
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
