Steering Wheel Heat Control Module Replacement

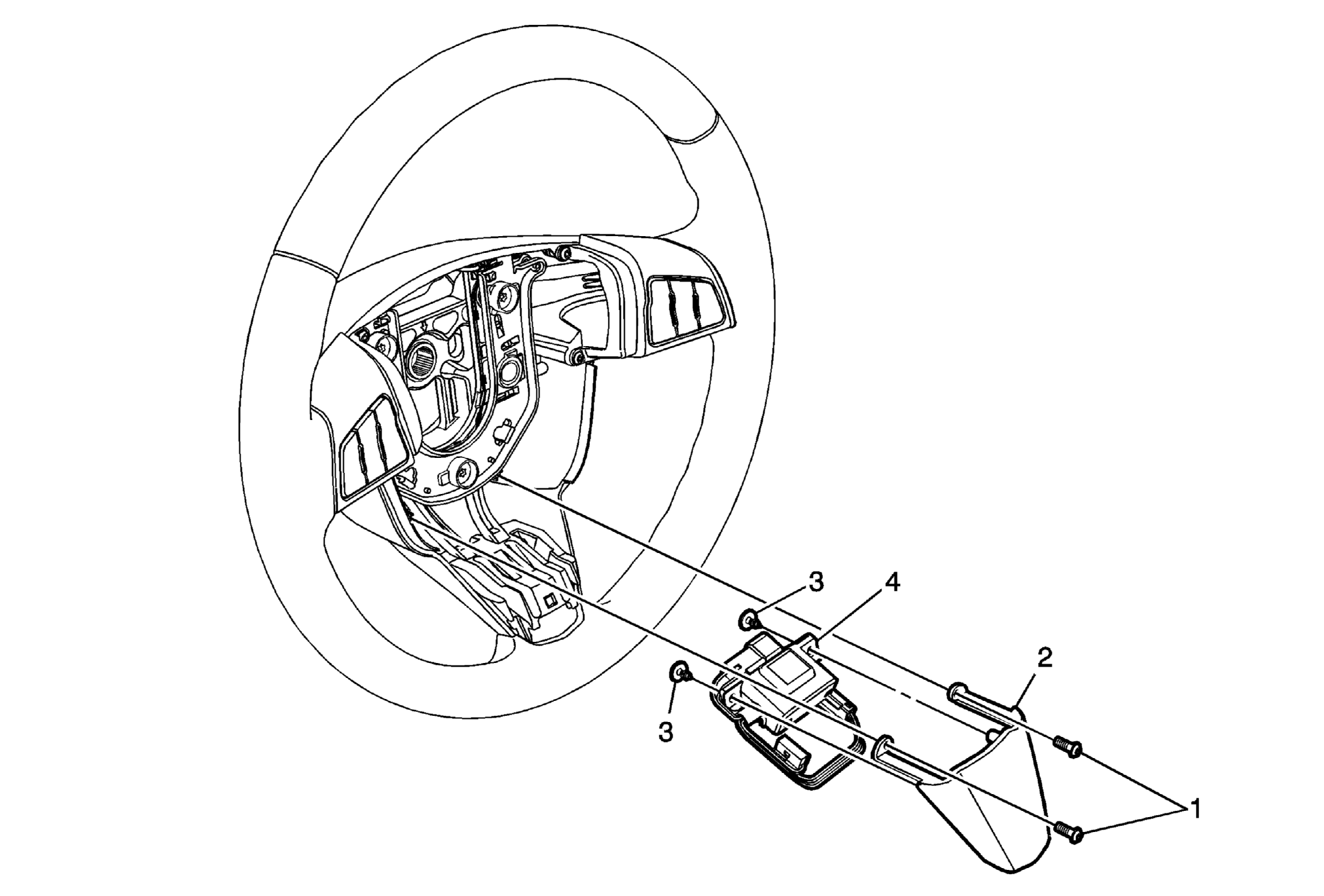

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement . |
|
| 1 | Steering Wheel Bezel Screws (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Steering Wheel Bezel |
| 3 | Steering Wheel Heat Control Module Screws (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 4 | Steering Wheel Heat Control Module Procedure Disconnect the steering harness from the steering wheel heat control module. |
