Front Camber Adjustment
- Position the vehicle properly on an alignment rack.

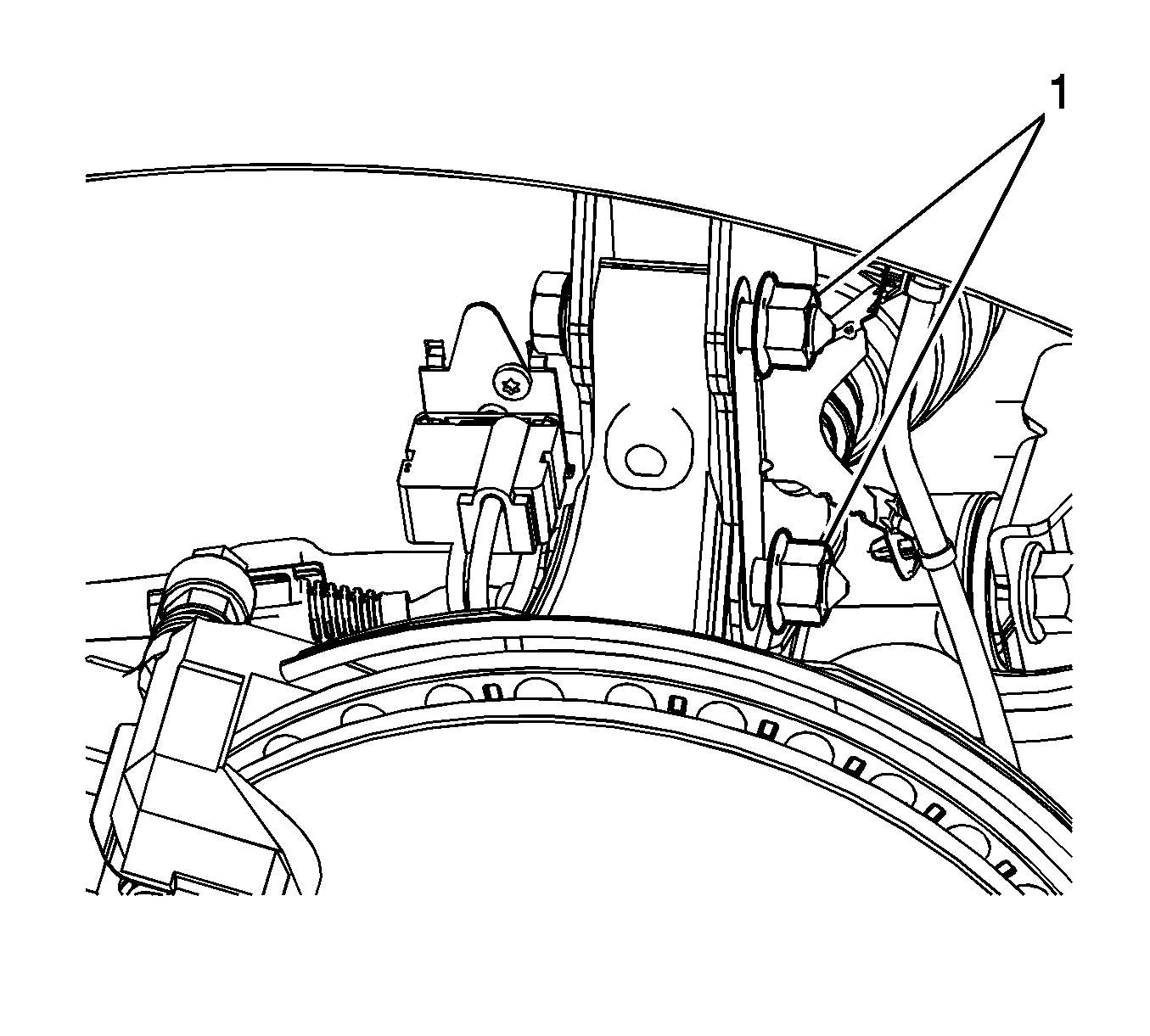

- Loosen both of the front suspension strut nuts (1) enough to allow for movement.
- If the front suspension strut needs to be modified, perform the following steps:
- Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Loosen, but do not remove the upper front suspension strut bolt from the knuckle.
- Remove the lower front suspension strut bolt.
- Push the front suspension strut inward and install the front suspension strut bolt in the bottom hole of the knuckle. This will hold the knuckle in place to allow the lower hole to be enlarged.

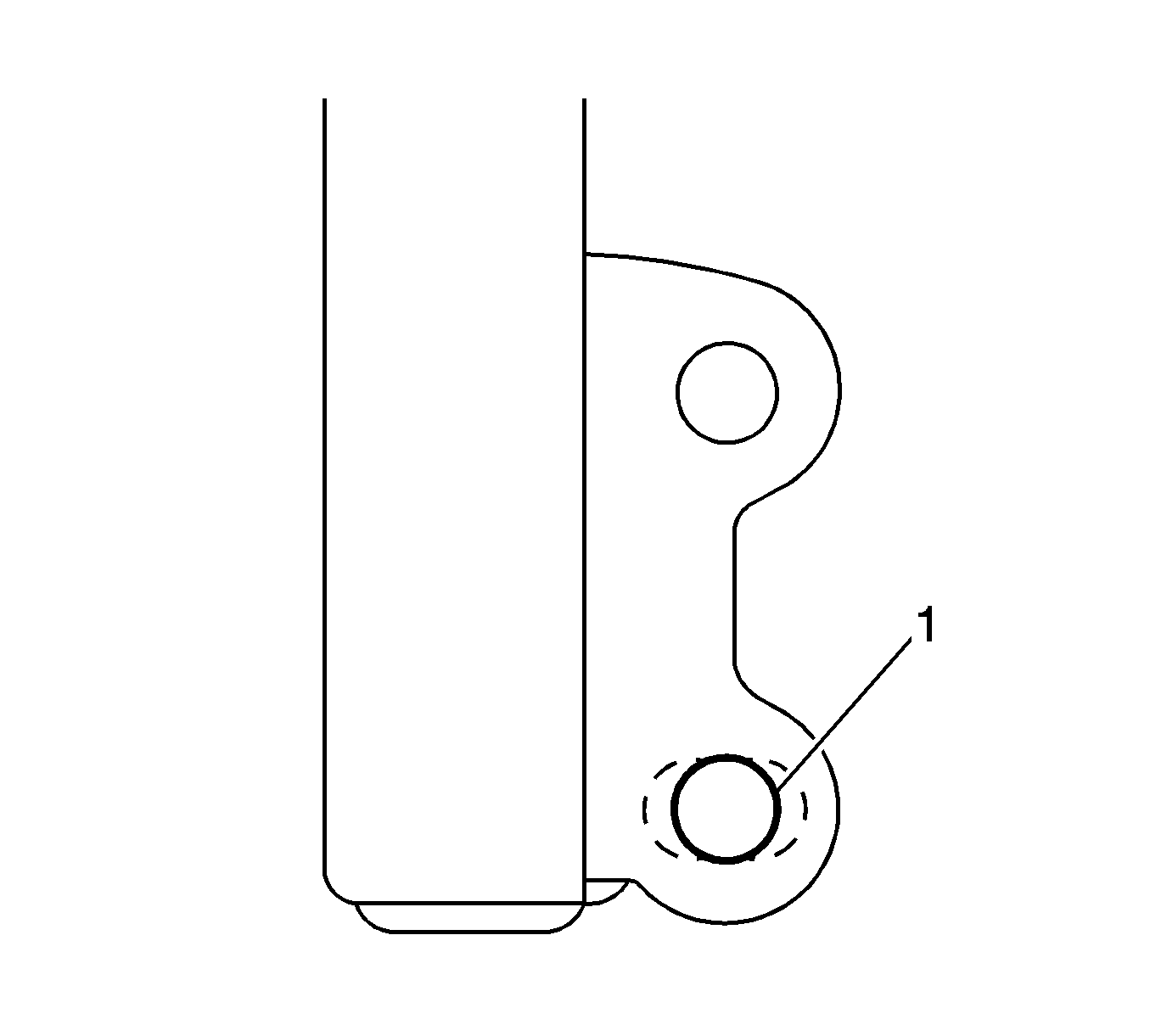

- Using a file, enlarge the outer flange hole (1) to match that of the inner flange hole.
- Remove the lower front suspension strut bolt from the knuckle.
- Install the lower front suspension strut bolt and tighten both bolts. Refer to Strut Assembly Removal and Installation
- Adjust the front camber to specification. Refer to Wheel Alignment Specifications .
- Install the strut to knuckle nuts (1) and tighten to 190 N.m (140 lb ft).
- Verify the front camber adjustment specification and readjust if needed.
NOTE:
The front suspension strut does not have to be removed from the vehicle to perform the following steps.
NOTE:

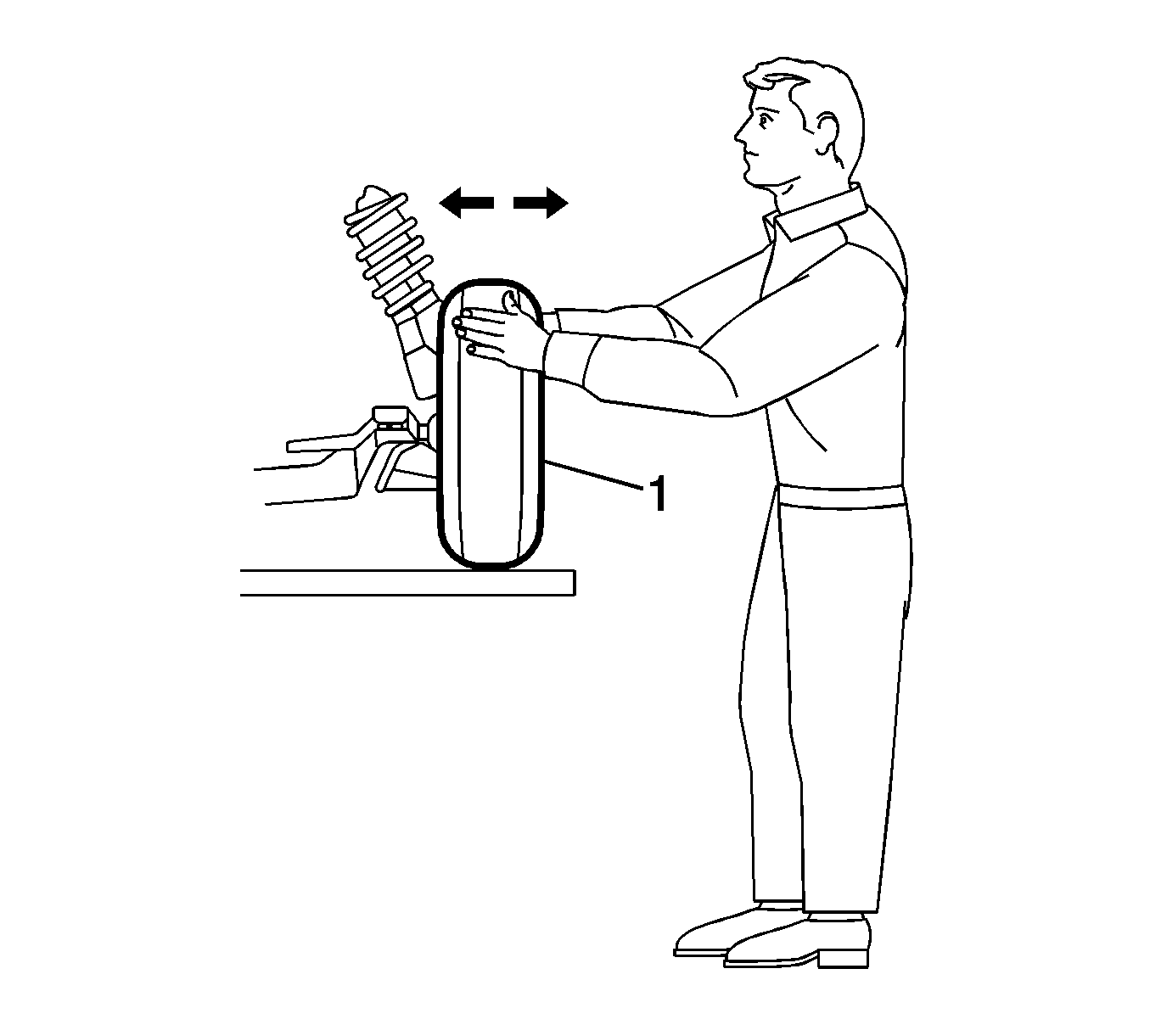

Move the top of the wheel (1) in or out to the proper specifications.
CAUTION:
Refer to Fastener Caution .
