Body Control Module Replacement

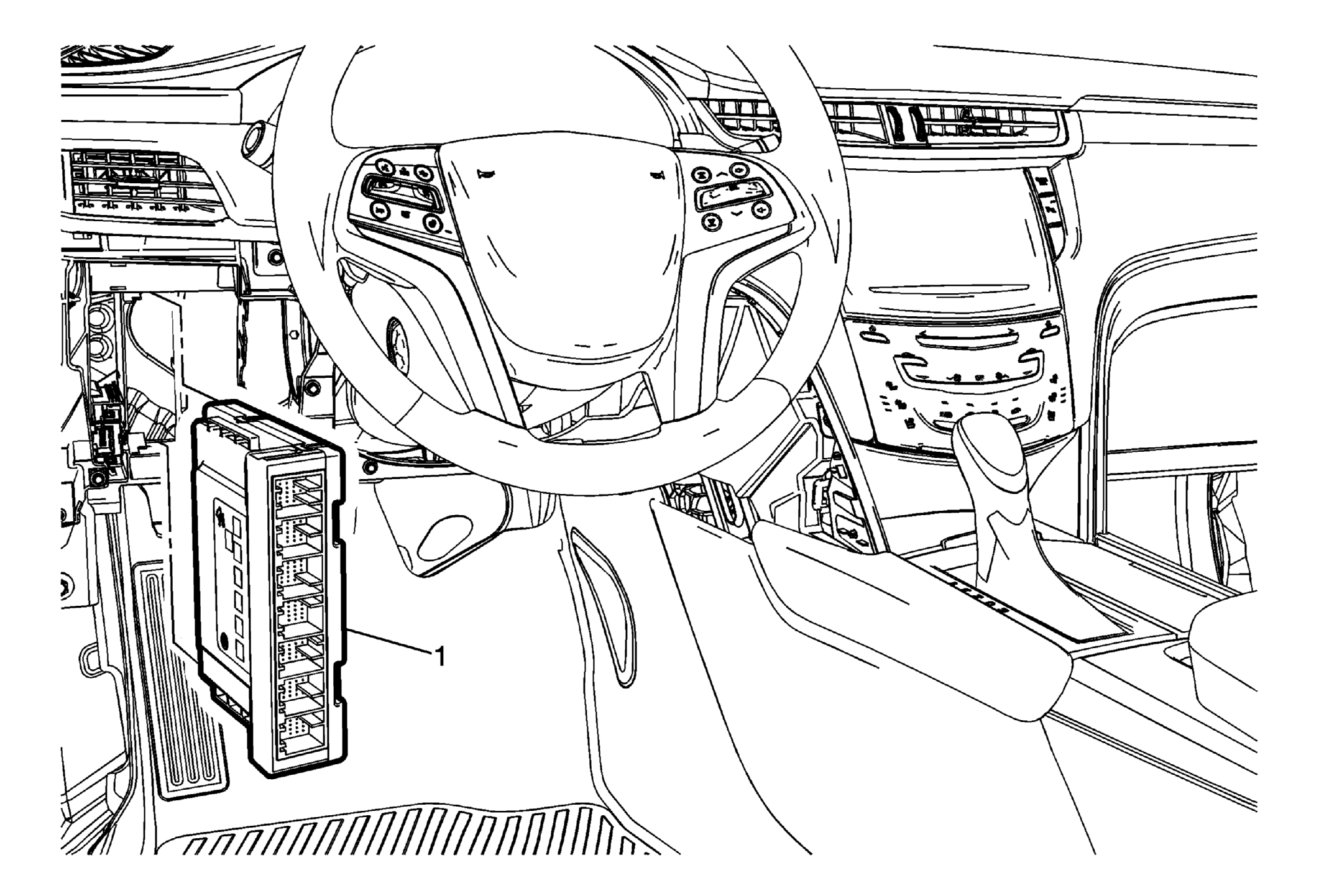

Fig 1: Body Control Module
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Remove the instrument panel knee bolster. Refer to
Instrument Panel Knee Bolster Replacement
.
Unclip and reposition the instrument panel fuse block.
1
Body Control Module
Procedure
Disconnect the electrical connectors.
Push tabs to release the body control module from the bracket.
Reprogram the module if replaced. Refer to
Control Module References
.
