Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
Power, Ground and Data Communication
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power, Ground and Data Communication

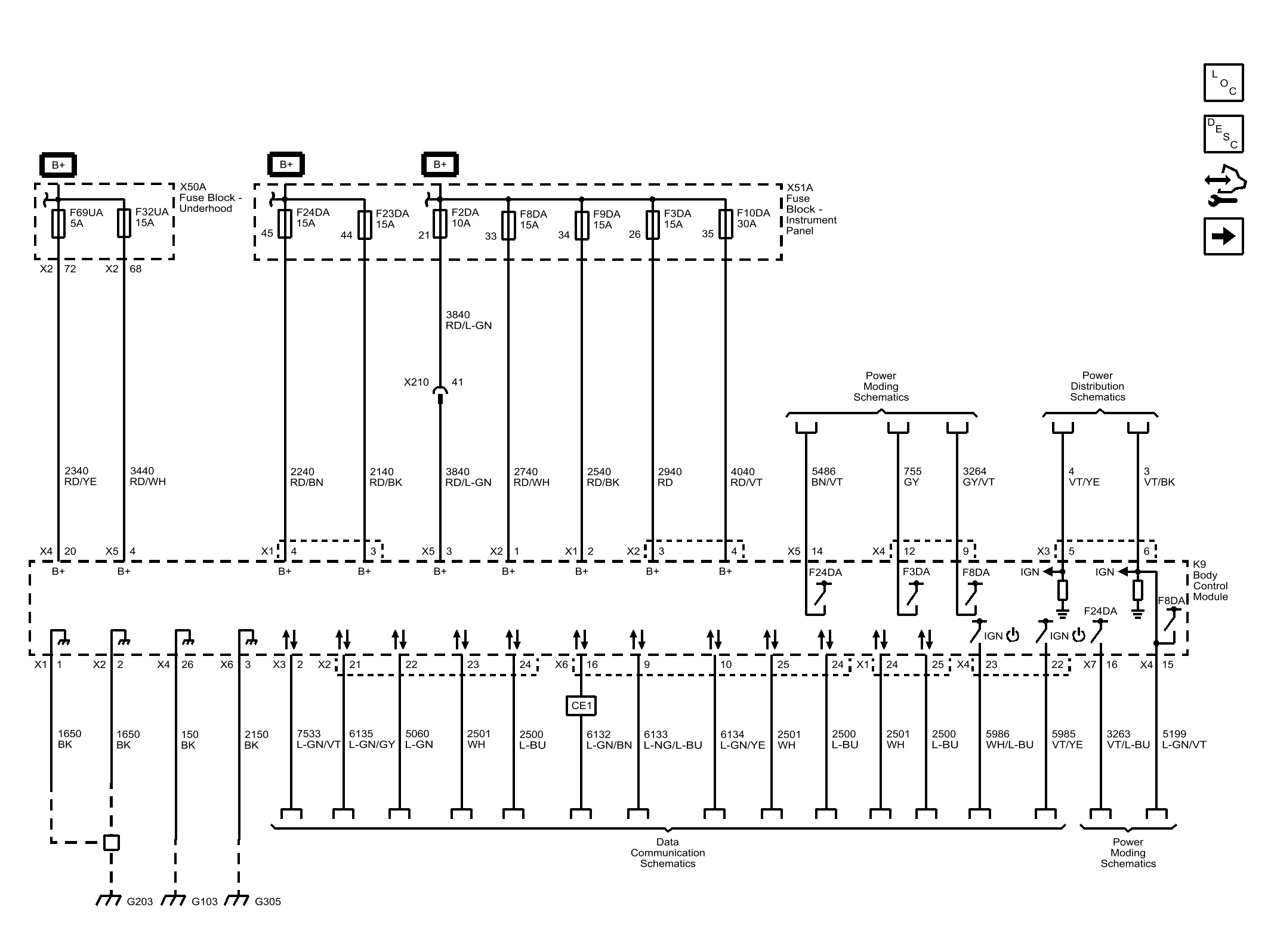

Fig 1: Power, Ground and Data Communication
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
