Chassis Expansion Bus

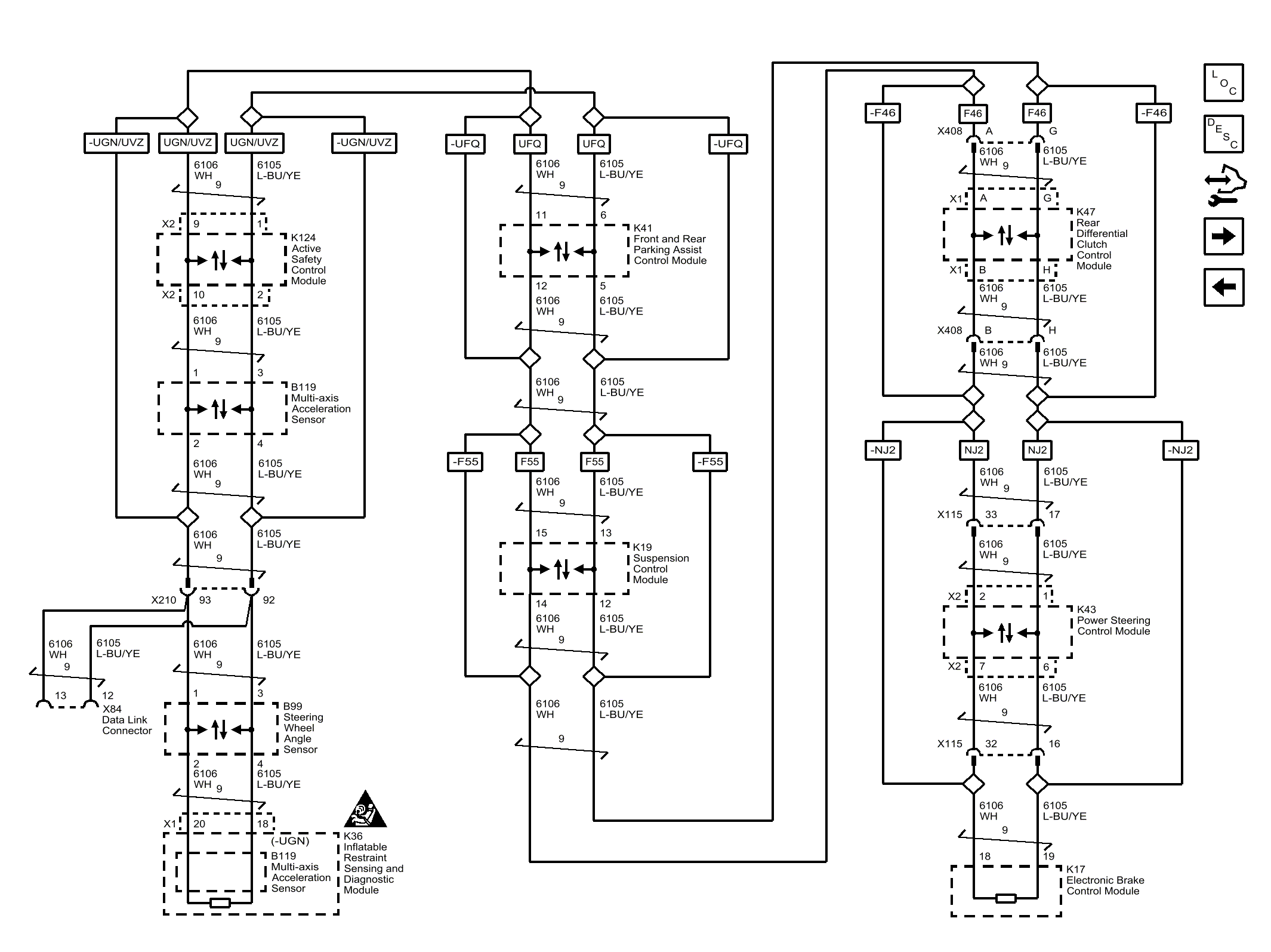

Fig 1: Chassis Expansion Bus
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
