Communication Enable (1 of 2)

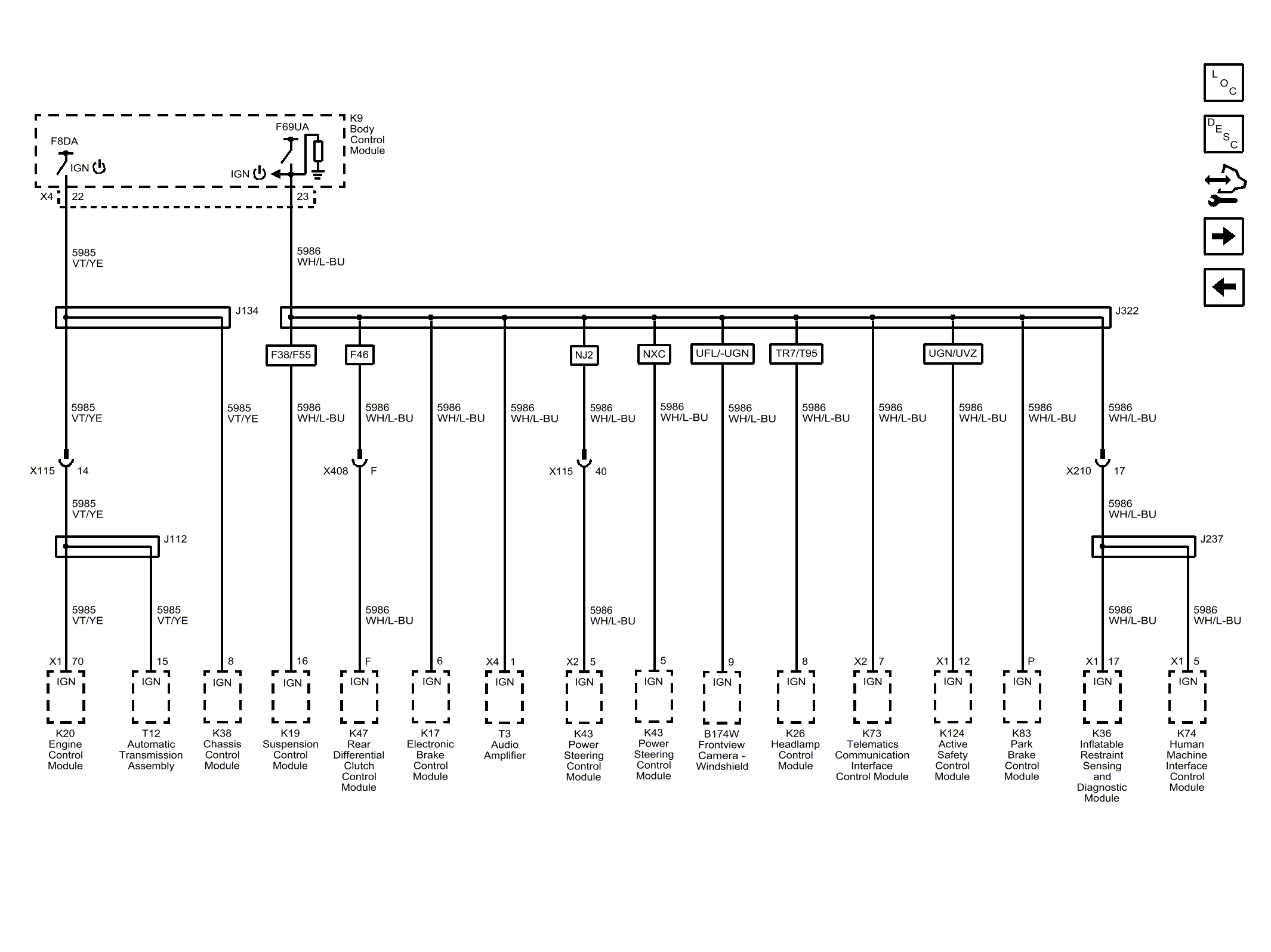

Fig 1: Communication Enable (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
