Keyless Entry Control Module Replacement

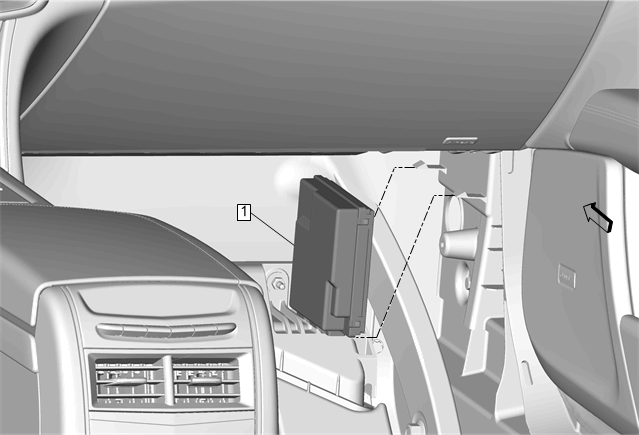

Fig 1: Keyless Entry Control Module
GM4253550Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Panel Carpet Replacement - Right Side
1 Keyless Entry Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
  3. Control Module References for programming and setup information, if required.
