Body Control Module Bracket Replacement

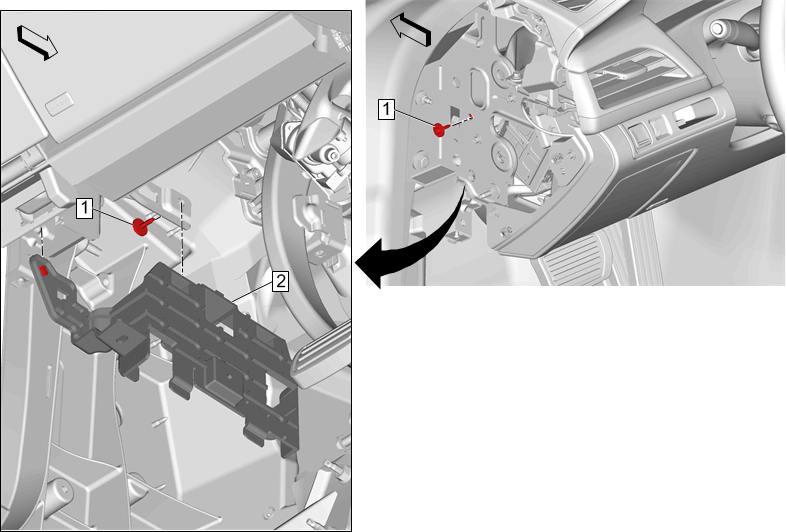

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Lower Trim Panel Insulator Replacement - Left Side Instrument Panel Outer Trim Cover Replacement
1	Body Control Module Bracket Bolt [2x] CAUTION: Fastener Caution 2.5 N.m (22 lb in)
2	Body Control Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Body Control Module Bracket Bolt [2x]

CAUTION: Fastener Caution

2.5 N.m (22 lb in)

Body Control Module Bracket

Procedure
