Installation Procedure

Electronic Brake Control Module (1) » Install

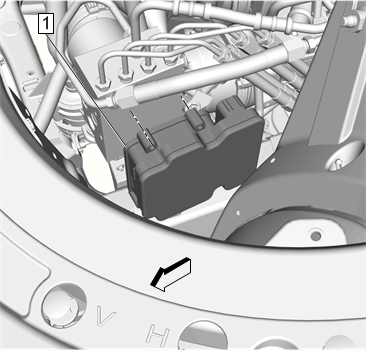

Fig 1: Electronic Brake Control Module
Courtesy of GENERAL MOTORS COMPANY
Electronic Brake Control Module Bolt (1) » Install and tighten 3 N.m (27 lb in) [2x]

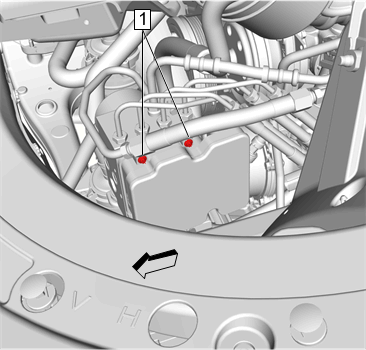

Fig 2: Electronic Brake Control Module Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Fastener Caution
Brake Pressure Modulator Valve Primary Brake Pipe Fitting (1) » Install and tighten 32 N.m (24 lb ft)

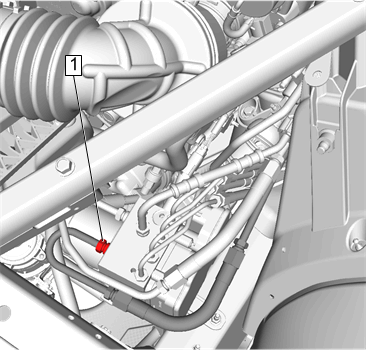

Fig 3: Brake Pressure Modulator Valve Primary Brake Pipe Fitting
Courtesy of GENERAL MOTORS COMPANY
Connect the EBCM electrical connector.
Bleed the brake system. Refer to Antilock Brake System Automated Bleed
Engine Wiring Harness Fuse Block Bracket » Install - Engine Wiring Harness Fuse Block Bracket Replacement
Program the EBCM. Refer to Control Module References
Center the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering
