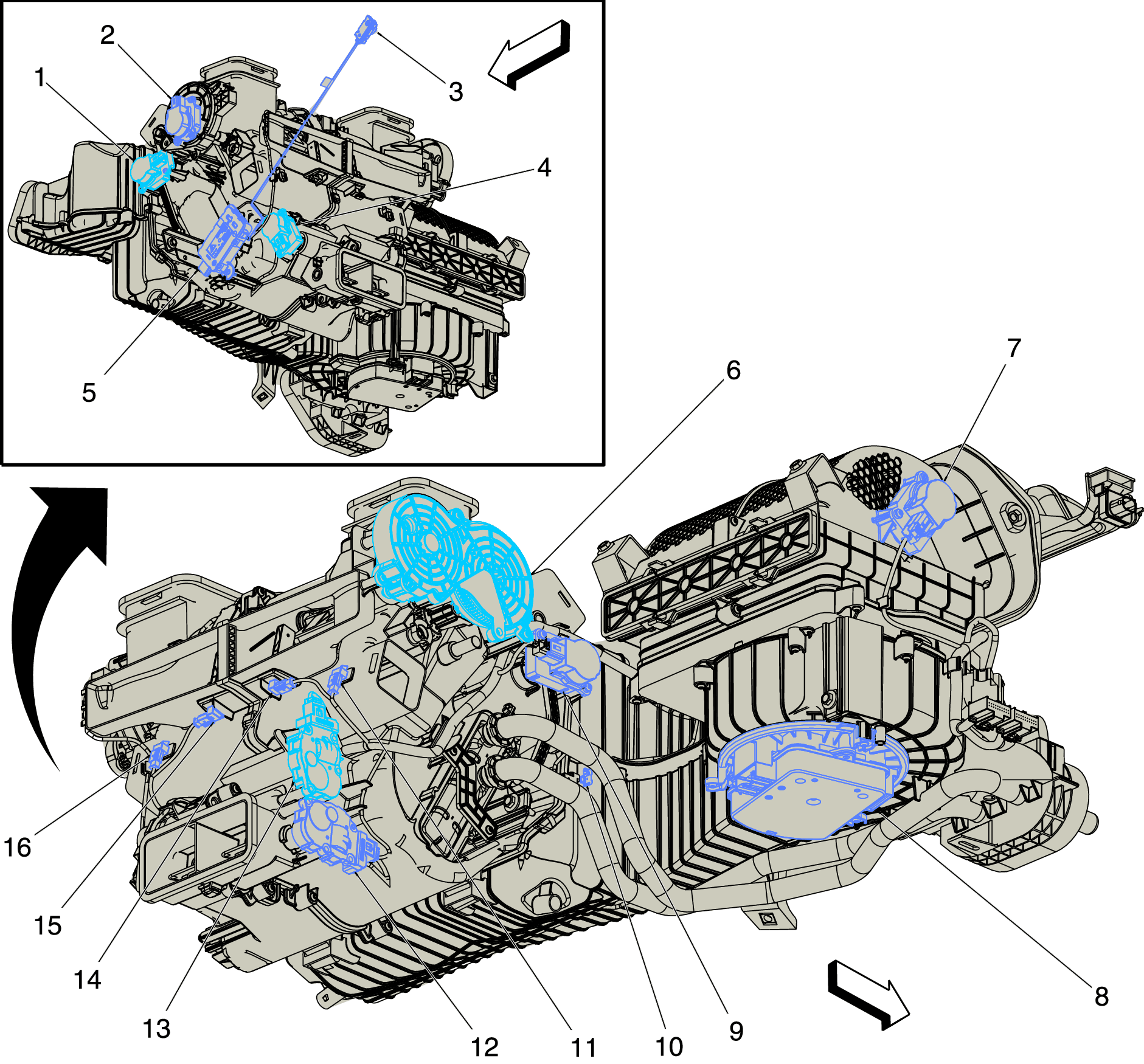

HVAC Module Components
HVAC Module Components
| Items |
|---|
| 1. M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left |
| 2. M37L Mode Door Actuator - Left M37L Mode Door Actuator - Left |
| 3. V2 Air Ionizer Electrode (KEM) |
| 4. M6CL Air Temperature Door Actuator - Center Console Left Auxiliary (C24) M6CL Air Temperature Door Actuator - Center Console Left Auxiliary (C24) |
| 5. M37R Mode Door Actuator - Right M37R Mode Door Actuator - Right |
| 6. M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator |
| 7. M8 Blower Motor M8 Blower Motor |
| 8. M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right |
| 9. B7E Air Temperature Sensor - Duct Right Lower B7E Air Temperature Sensor - Duct Right Lower |
| 10. M37B Mode Door Actuator - Auxiliary (C24) M37B Mode Door Actuator - Auxiliary (C24) |
| 11. M6CR Air Temperature Door Actuator - Center Console Right Auxiliary (C24) M6CR Air Temperature Door Actuator - Center Console Right Auxiliary (C24) |
| 12. B7J Air Temperature Sensor - Duct Right Upper B7J Air Temperature Sensor - Duct Right Upper |
| 13. B7H Air Temperature Sensor - Duct Left Upper B7H Air Temperature Sensor - Duct Left Upper |
| 14. B7D Air Temperature Sensor - Duct Left Lower B7D Air Temperature Sensor - Duct Left Lower |
| 15. V1 Air Ionizer (KEM) V1 Air Ionizer (KEM) |
