Interface Control Module Bracket Replacement

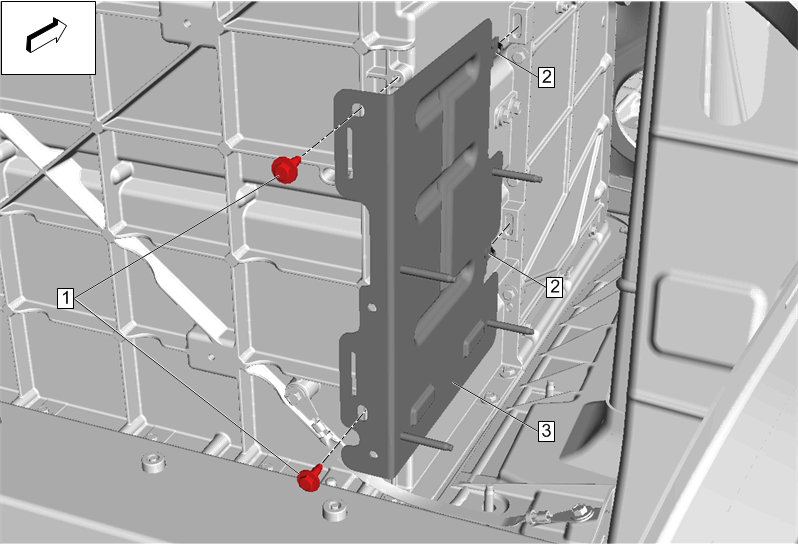

| Callout | Component Name |
|---|---|
| Preliminary Procedure Hybrid Powertrain Control Module 2 Replacement |
|
| 1 | Interface Control Module Bracket Bolt [2x]
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 2 | Retaining Tab [2x] |
| 3 | Interface Control Module Bracket |
