Wireless Charging System Module Replacement

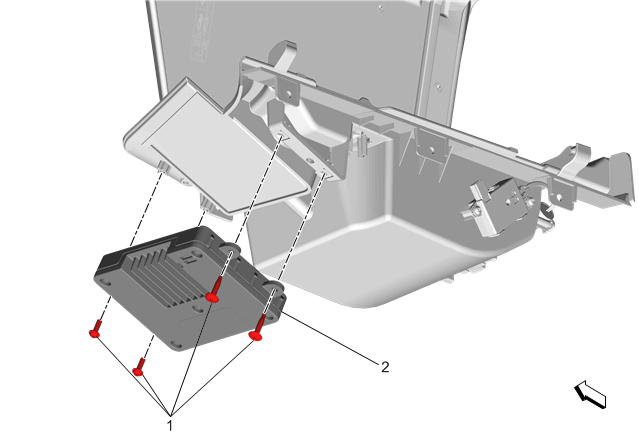

Fig 1: Wireless Charging System Module
GM4255902Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Compartment Replacement
1 Wireless Charging System Module Bolt [4x]
CAUTION: Refer to Fastener Caution .

Tighten
1 N.m (9 lb in)
2 Wireless Charging System Module
