Installation Procedure

Generator Control Module Coolant Pump Bracket (2) @ Drivetrain and Front Suspension Cradle» Install

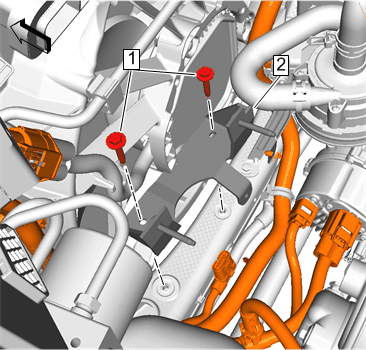

Fig 1: Generator Control Module Coolant Pump Bracket Bolt
Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Pump Bracket Bolt (1) @ Generator Control Module Coolant Pump Bracket» Install and tighten [2x] 9 N.m (80 lb in)
CAUTION: Refer to Fastener Caution .

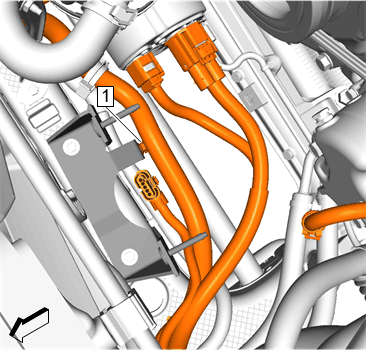

Engine Wiring Harness Retainer (1) @ Generator Control Module Coolant Pump Bracket» Install

Fig 2: Engine Wiring Harness Retainer
Courtesy of GENERAL MOTORS COMPANY

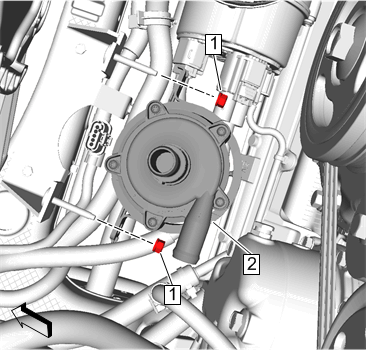

Generator Control Module Coolant Pump (2) @ Generator Control Module Coolant Pump Bracket» Install - Generator Control Module Coolant Pump Replacement

Fig 3: Generator Control Module Coolant Pump Bracket Nut
Courtesy of GENERAL MOTORS COMPANY
Enable the high voltage system. Refer to High Voltage Enabling
Fill the power electronics and auxiliary radiator cooling system. Refer to Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
Start the engine and check for coolant leaks.
