Installation Procedure

Generator Control Module Coolant Pump (2) @ Generator Control Module Coolant Pump Bracket» Install

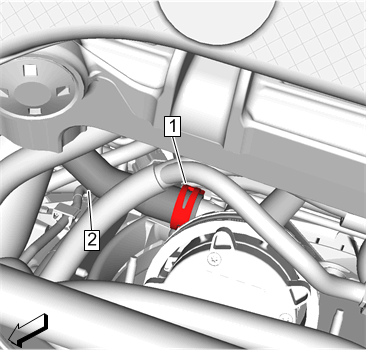

Fig 1: Generator Control Module Coolant Pump Bracket Nut
Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Pump Bracket Nut (1) @ Generator Control Module Coolant Pump Bracket» Install and tighten [2x] 9 N.m (80 lb in)
CAUTION: Refer to Fastener Caution .
Electrical Connector @ Generator Control Module Coolant Pump» Connect
Drive Motor Generator Control Module Radiator Inlet Hose (2) @ Generator Control Module Coolant Pump» Install - Drive Motor Generator Control Module Radiator Inlet Hose Replacement

Fig 2: Drive Motor Generator Control Module Radiator Inlet Hose
Courtesy of GENERAL MOTORS COMPANY
Drive Motor Generator Control Module Coolant Pump Hose (2) @ Generator Control Module Coolant Pump» Install - Drive Motor Generator Control Module Coolant Pump Hose Replacement

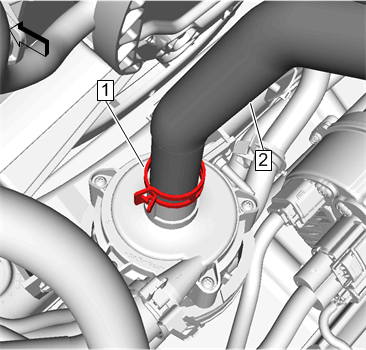

Fig 3: Drive Motor Generator Control Module Coolant Pump Hose Clamp
Courtesy of GENERAL MOTORS COMPANY
Fill the power electronics and auxiliary radiator cooling system. Refer to Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
Enable the high voltage system. Refer to High Voltage Enabling
Start the engine and check for coolant leaks.
