Forward Collision Alert Display Replacement

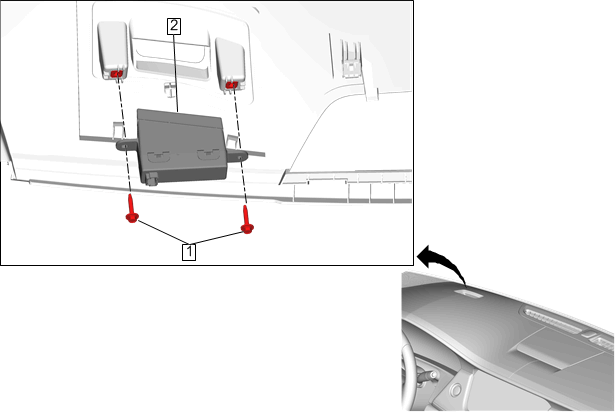

Fig 1: Forward Collision Alert Display
GM4252782Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Upper Trim Panel Replacement
1 Forward Collision Alert Display Bolt [2x]
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Forward Collision Alert Display
