Forward Range Radar Sensor Replacement

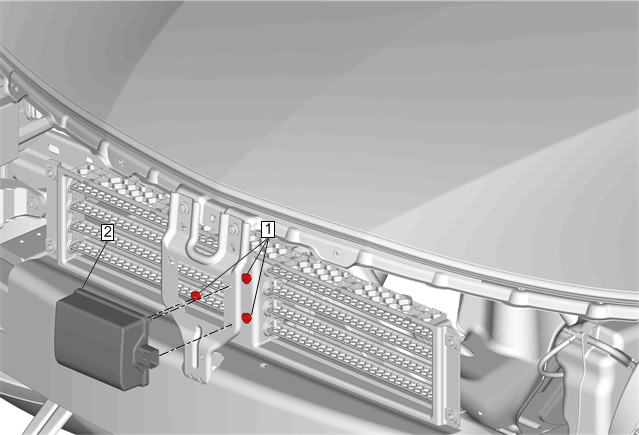

Fig 1: Forward Long Range Radar Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (Without UV3)Front Bumper Fascia Replacement (With UV3)
1	Forward Range Radar Sensor Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Forward Long Range Radar Sensor Procedure Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Forward Range Radar Sensor Fastener [3x]

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Forward Long Range Radar Sensor

Procedure
