Front View Driver Information Camera Replacement

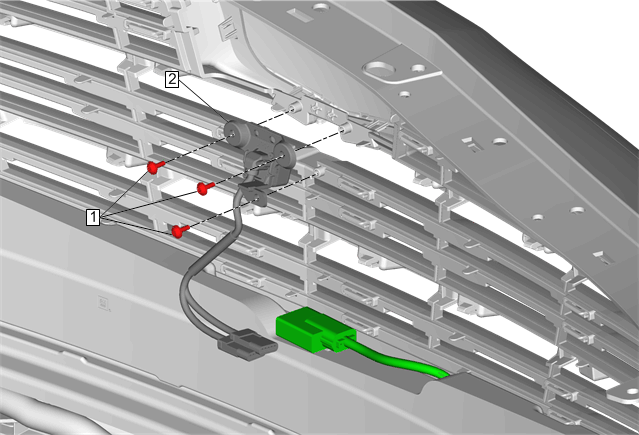

Fig 1: Front View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (Without UV3)Front Bumper Fascia Replacement (With UV3)
1	Front Grille Bolt [3x] CAUTION: Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front View Driver Information Camera Procedure Disconnect the electrical connector. Video Processing Control Module Calibration

Callout

Component Name

Front Grille Bolt [3x]

CAUTION: Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front View Driver Information Camera

Procedure
