Night Vision Camera Replacement

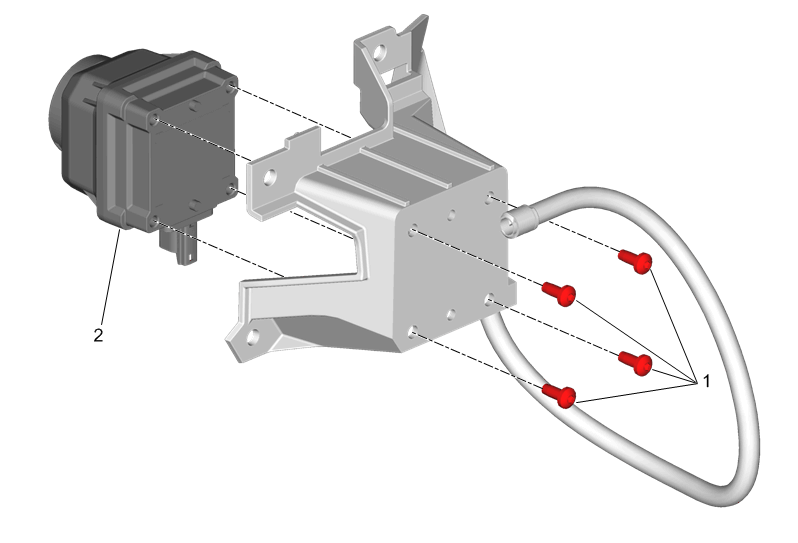

Fig 1: Night Vision Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Night Vision Camera Bracket Replacement
1	Night Vision Camera Bolt [4x] CAUTION: Fastener Caution Tighten 3.75-7.5 N.m (33-66 lb in)
2	Night Vision Camera Procedure Perform the necessary programming and setup procedure: Control Module References Calibrate the night vision camera. Refer to Night Vision Camera Control Module Learn

Callout

Component Name

Night Vision Camera Bolt [4x]

CAUTION: Fastener Caution

Tighten
3.75-7.5 N.m (33-66 lb in)

Night Vision Camera

Procedure

Perform the necessary programming and setup procedure: Control Module References
Calibrate the night vision camera. Refer to Night Vision Camera Control Module Learn
