Night Vision Module Replacement

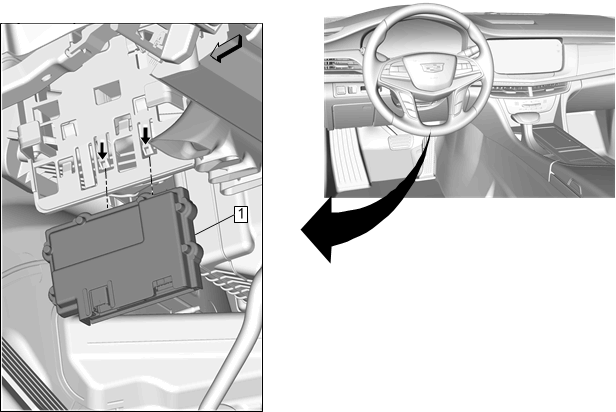

Fig 1: Night Vision Module
GM4248959Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
1 Night Vision Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
  3. Control Module References for programming and setup information, if required.
