Active Safety Control Module Bracket Replacement

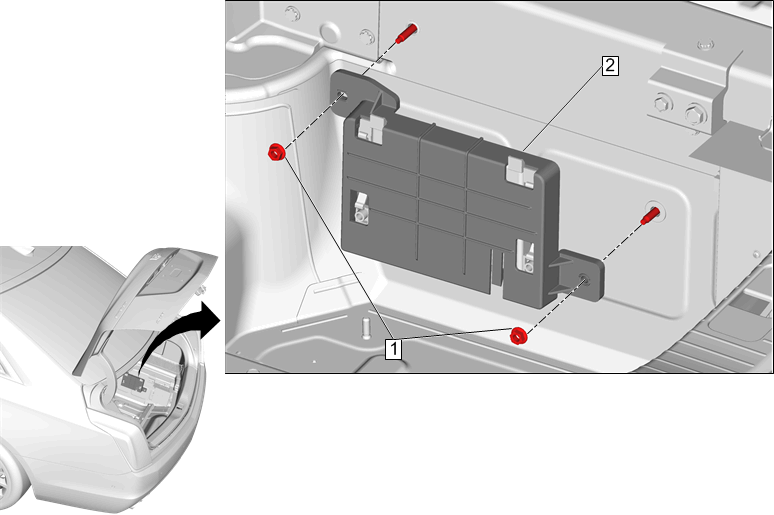

Fig 1: Active Safety Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Stowage Compartment Cover Replacement (Without HP9)
1	Active Safety Control Module Bracket Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Active Safety Control Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Active Safety Control Module Bracket Nut [2x]

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Active Safety Control Module Bracket

Procedure
