Active Safety Control Module Replacement

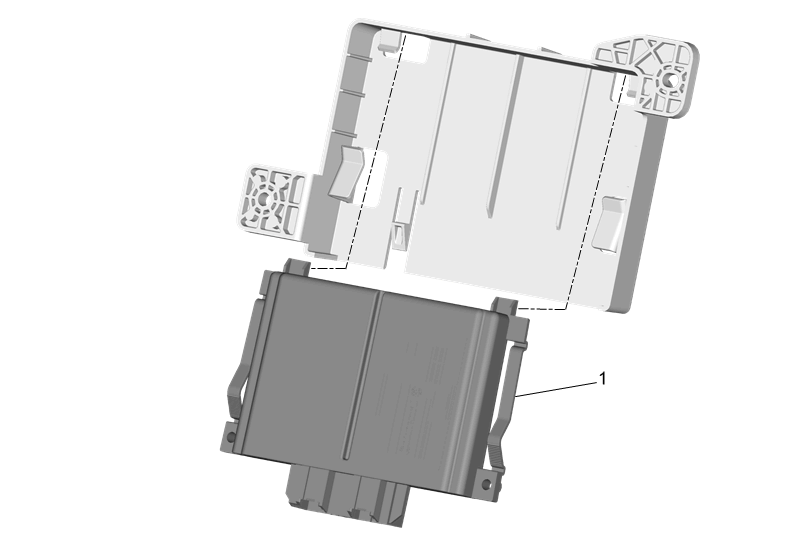

Fig 1: Active Safety Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Active Safety Control Module Bracket Replacement
1	Active Safety Control Module Procedure Release the retaining tabs. Control Module References for programming and setup information, if required.

Callout

Component Name

Active Safety Control Module

Procedure
