Parking Assist Control Module Replacement

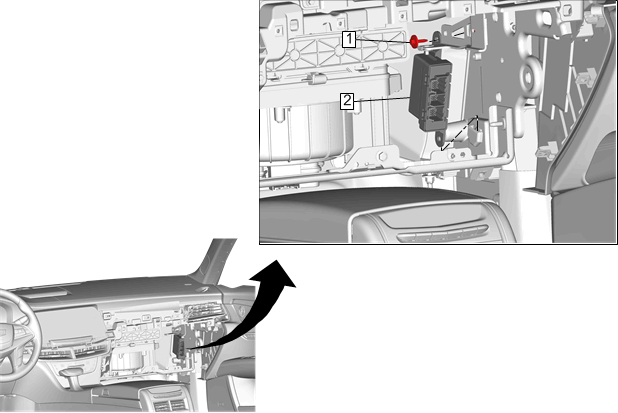

Fig 1: Parking Assist Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Compartment Replacement Communication Interface Module Bracket Replacement
1	Parking Assist Alarm Control Module Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Parking Assist Control Module Procedure Disconnect the electrical connectors. Control Module References for programming and set up information, if required.

Callout

Component Name

Preliminary Procedures

Parking Assist Alarm Control Module Bolt

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Parking Assist Control Module

Procedure
