Low Frequency Console Antenna Replacement

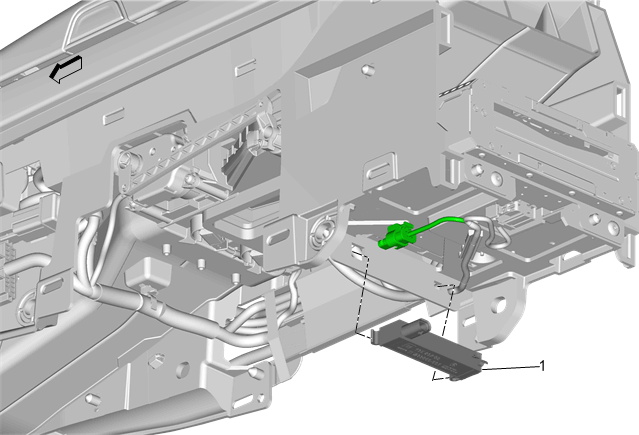

Fig 1: Low Frequency Console Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Replacement
1	Low Frequency Console Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Low Frequency Console Antenna

Procedure
