Low Frequency Rear Bumper Antenna Replacement

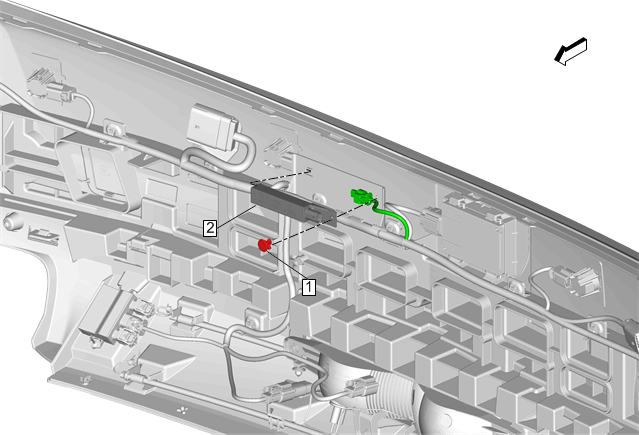

Fig 1: Low Frequency Rear Bumper Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Bumper Fascia Replacement Disconnect the electrical connector.
1	Rivet WARNING: Refer to Eye Protection Warning . Procedure Drill out the rivet.
2	Low Frequency Rear Bumper Antenna Procedure Release the retaining tab.

Callout

Component Name

Preliminary Procedures

Rivet

WARNING: Refer to Eye Protection Warning .

Procedure
Drill out the rivet.

Low Frequency Rear Bumper Antenna
Procedure
Release the retaining tab.
