Low Frequency Rear Compartment Antenna Replacement

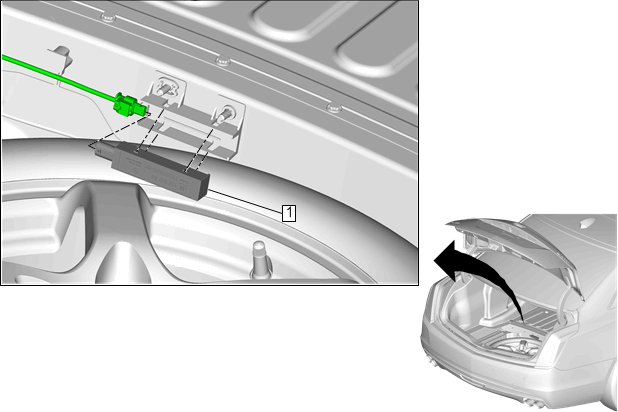

Fig 1: Low Frequency Rear Compartment Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Panel Trim Replacement (Without HP9)Rear Compartment Floor Panel Trim Replacement (With HP9)
1	Low Frequency Rear Compartment Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Low Frequency Rear Compartment Antenna

Procedure
