Keyless Entry - Active
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Keyless Entry - Active

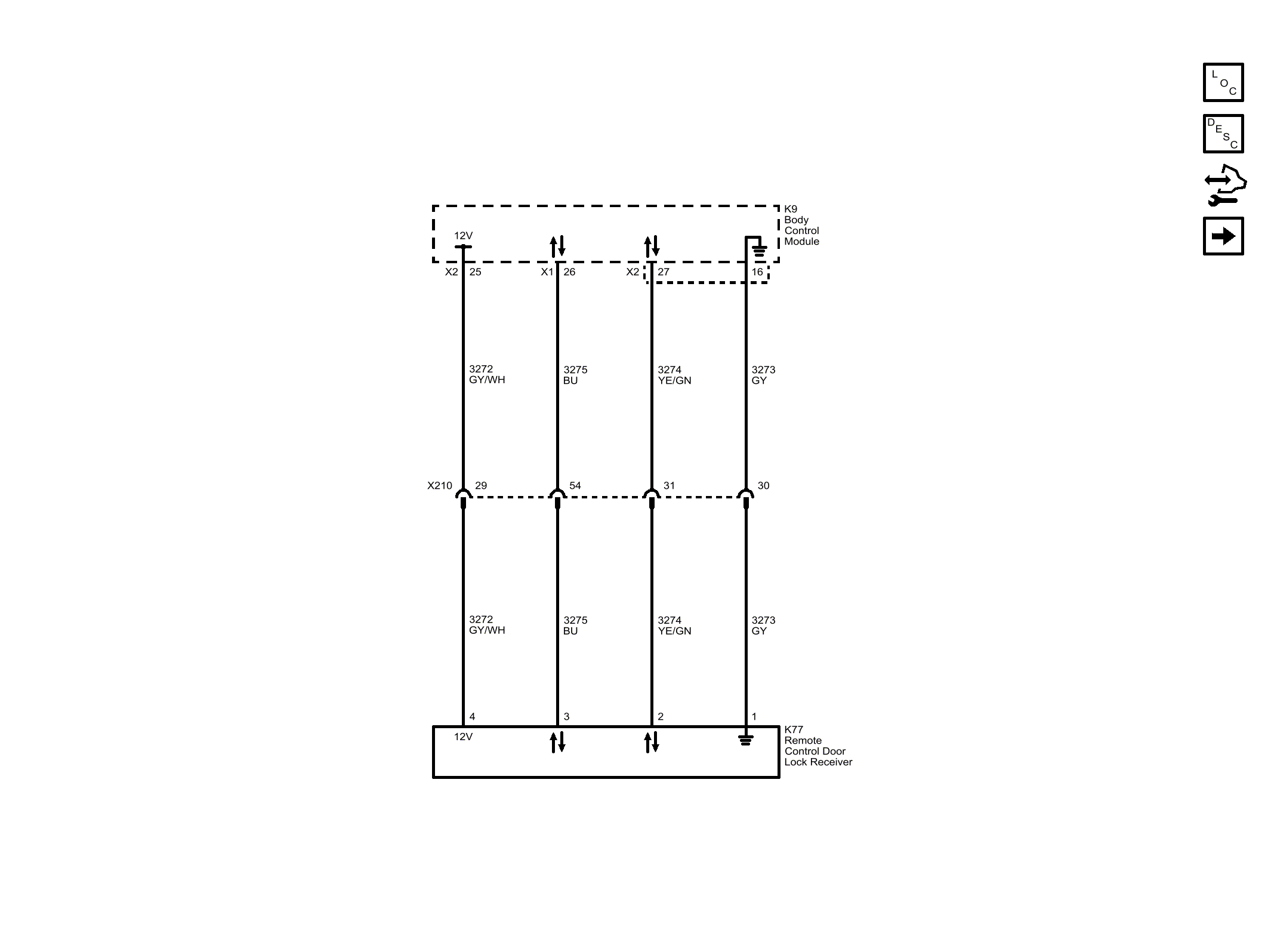

Fig 1: Keyless Entry - Active
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
